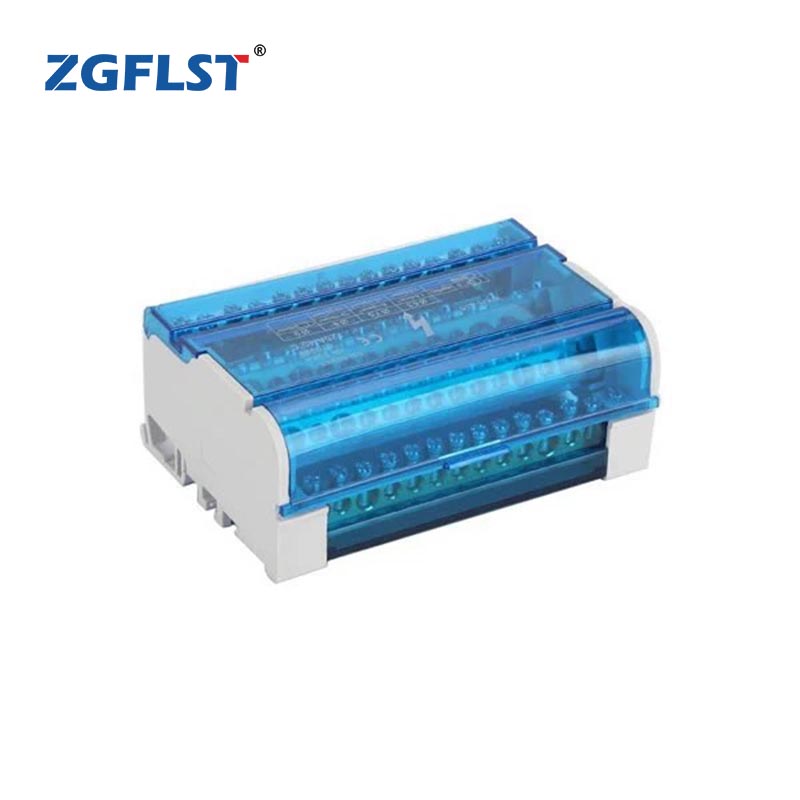

415
Description:
Power distribution blocks offer a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.
For DIN rail or chassis mounting with screws.
IP20 rated with hinged and removable cover.
High conductivity with excellent electrical contacts.
Compact design.
- Type and Specification
| Model No. | 415 |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 134/50/90 |
| Connection method | Screw Cage |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 500V/125A |
| Quantity of Hole | 4X15 |
| Dimension for Brass Conductor | 6.5*12mm |
| Mounting Type | 35mm DIN Rail |
| Standard | IEC 60947-7-1 |
| Certification | CE/RoHS/CQC/ISO 9001 |
