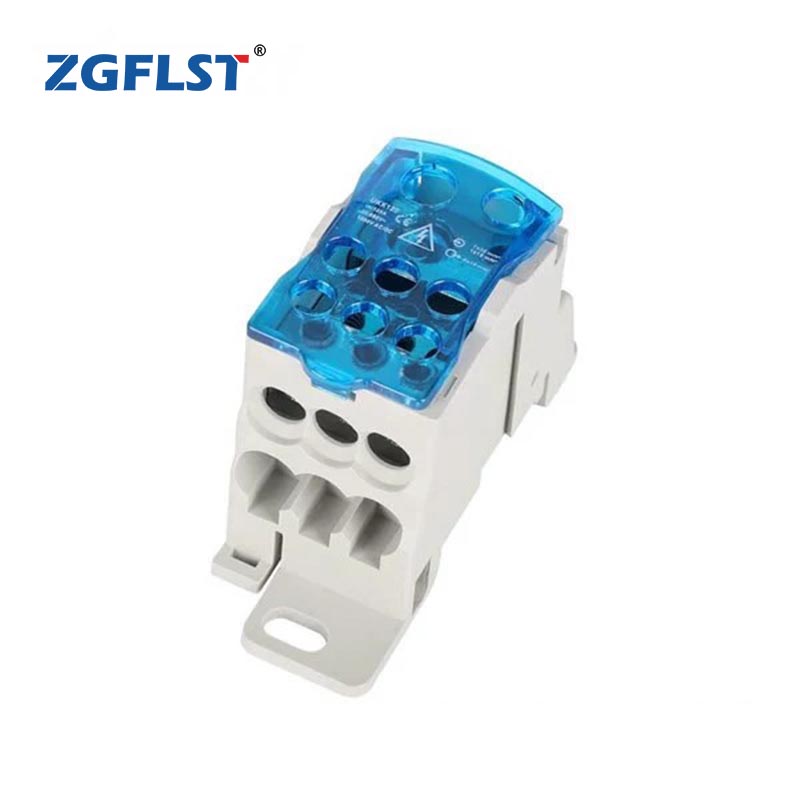

UKK125A
Description:
These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover. High conductivity with excellent electrical contacts.
1.Compact design.
2.Simple and Safety Operating
3.Install on 35mm wide DIN rail or chassis mounting with screws.
4.With Dust-proof and insulation cover
5.hinged design with safety removable cover.
- Type and Specification
| Model No. | UKK 125A |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 29.4/47/74 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/125A |
| Entry Specification | 1X16 /1X35mm² |
| Output Specification | 6X16 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| Certification | CE/RoHS/CQC/ISO 9001 |
