SP-15000
Description:

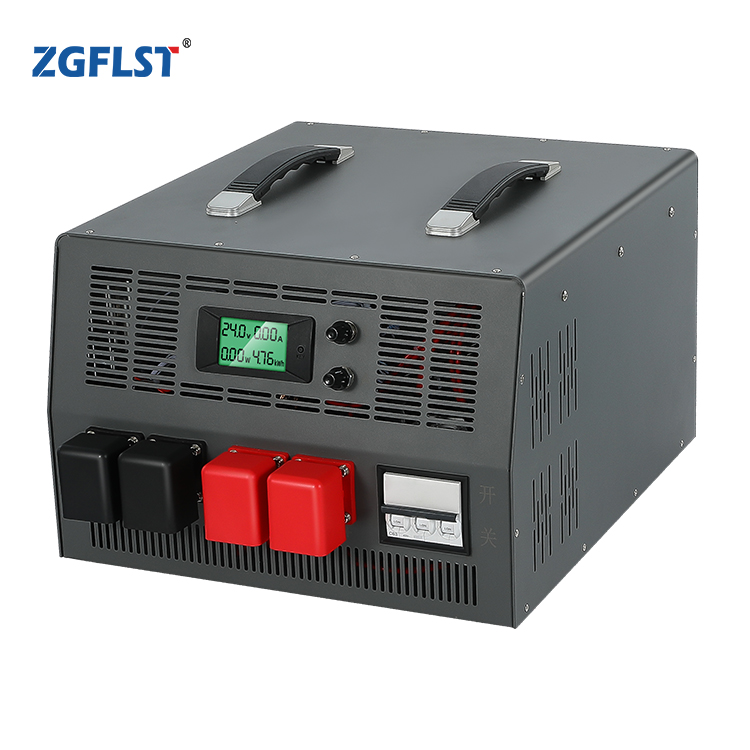

SP-15000 is a 15KW single output chassis type AC to DC power supply. The entire series input voltage range is 95-265VAC, and can provide DC output for most industrial needs.
Each chassis can be air-cooled through an internal speed-controlled fan, and the operating temperature is close to 60°C.
Built-in multiple functions such as output voltage,Current adjustable, current sharing, remote on/off control, 485 communication control, auxiliary power supply and other functions provide a variety of flexible designs.
- Type and Specification
| Model | SP-15000-24 | SP-15000-36 | SP-15000-48 | SP-15000-60 | SP-15000-110 | SP-15000-220 | |
| OUTPUT | DC voltage | 24V | 36V | 48V | 60V | 110V | 220V |
| Rated current | 625A | 416A | 312A | 250A | 136A | 68A | |
| Current range | 0 – 625A | 0 – 416A | 0 – 312A | 0 – 250A | 0 – 136A | 0 – 68A | |
| Rated power | 15000W | ||||||
| Ripple & Roise | 500mV | 500mV | 600mV | 600mV | 1000mV | 1500mV | |
| Constant current range | 12 – 24V | 18 – 36V | 24 – 48V | 30 – 60V | 55 – 110V | 110 – 220V | |
| Voltage tolerance | ±1.0% | ||||||
| Line regulation | ±1.0% | ||||||
| Load regulation | ±1.0% | ||||||
| Setup risetime | 1500mS ，700mS/ 230VAC( Full load） | ||||||
| INPUT | Voltage range | 95- 190 VAC(output current 50%) , 195- 265 VAC(output current 10 0%) | |||||
| Frequency range | 45Hz – 65Hz | ||||||
| Power factor | PF≧0 .99/ 230VAC( Full load) | ||||||
| Efficiency( MAX) | 90 % | 91.5 % | 92 % | 92 % | 92.5 % | 93 % | |
| AC Current | ＜110A | ||||||
| Leakage current | ＜3 .0mA / 240VAC | ||||||
| PROTECTION | Short curcuit | Enter the constant current and the voltage is less than 10% of the rated voltage, turn off and lock the output after 1 second, and resume after restart | |||||
| Over current | The user can set a delay of 5 seconds after the current value is turned off, and the output can be restored after restart | ||||||
| Over voltage | The user can set the overvoltage value to turn off the output voltage, and resume after restart | ||||||
| Over temperature | Turn off the output and automatically recover or restart after the temperature drops | ||||||
| FUNCTION | Output voltage adjustment | 0 – 26.4V | 0 – 39.6V | 0 – 52.8V | 0 – 66V | 0 – 121V | 0 – 242V |
| Output constant current adjustment | 0 – 740A | 0 – 500A | 0 – 375A | 0 – 300A | 0 – 163.6A | 0 – 81.8A | |
| 485 communication | MODBUS Communication protocol | ||||||
| Isolating auxiliary power supply | 12V 0.5A ( Need to be customized) | ||||||
| Output remote | Default power on, high power off（5V-12V） ( Need to be customized) | ||||||
| control switch | |||||||
| Alarm output | Power normal signal ( Dry contact ≦ 36 V , 0 . 1A )( Need to be customized) | ||||||
| ENVIRONMENT | Working TEMP. | -20 – +60℃ | |||||
| Working humidity | -20 – 90% RHnon-condensing | ||||||
| Storage TEMP. and humidity | -40 – +85℃, 10 – 95% RH non-condensing | ||||||
| Vibration | 10 – 500Hz, 2G 10mins/T, X 、Y 、Zaxis 60 minutes each | ||||||
| SAFETY& EMC | Isolation resistance | Input-output: 100 Mhms/500 VDC/ 25 ℃/70% RH | |||||
| Withstand voltage | I/ P-O/ P : 2KVAC I/ P- FG:2KVAC O/ P- FG:0 . 5KVAC | ||||||
| OTHERS | Dimension | 455 *345 * 251mm（L*W * H） | |||||
| Net weight | 22 KG | ||||||
| Remark | 1、All parameters NOT specially mentioned are measured at 230 VAC input, rated load and 25 ℃ of ambient temperature. | ||||||
| 2、Ripple &noise are measured at 20 MHz of bandwidth by using a 12 ” twisted pair-wire terminated with a 0 . 1uf &47uf parallel capacitor. | |||||||
| 3、Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
| 4、If the input voltage is low, the output needs to be derated. For details, see the static characteristic diagram. | |||||||
| 5、Length of setup time is measured at cold first start,Turning ON/OFF the power supply may lead to increase of the setup time. | |||||||
