S-200
Description:

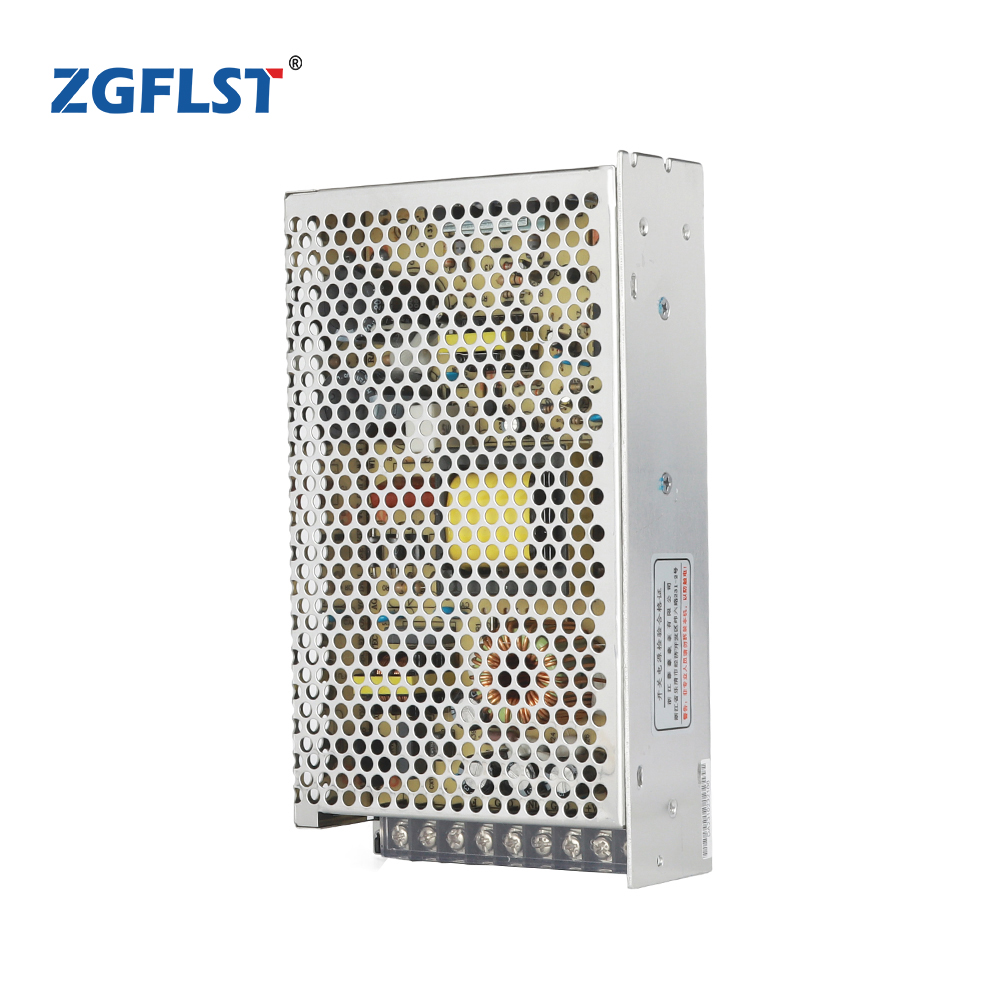

S-200W Switching Power Supply is the most widely used power supply
It has high efficiency, stable quality, and a wide range of uses.
It can be used in LED, industry, automation, industrial control, monitoring, network communication, and other fields.
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-200-5 | S-200-12 | S-200-24 | S-200-48 |
| DC Output Voltage | 5V | 12V | 24V | 48V |
| Rated Output Current | 40A | 16.7A | 8.3A | 4.2A |
| Output Current Range | 0-40A | 0-16.7A | 0-8.3A | 0-4.2A |
| Wave And Noise | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 85% | 85% | 86% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 85~132VAC/176~264VAC selected by switch | |||
| Input Current | 4.5A/115VAC 2.5A/230VAC | |||
| AC INnrush Current | Cold-start current 20A/115V 35A/230V | |||
| Over Load Protection | 105%~150% rated output power | |||
| Protection: Hiccup mode, recover automatically | ||||
| Over Voltage Protection | 5.6~6.6V | 13.8~16V | 27.5V~32V | 55~64V |
| Protection: Shut down the output voltage | ||||
| Setup Rise Hold-Up Time | 200s, 100ms, 20ms | |||
| Working Temperature And Humidity | -10°C~+60°C, 20~90%RH | |||
| Overall Dimension | 199*110*50mm /20pcs per carton | |||
| Safety Standards | Design refer to UL1012,EN60950-1, EN61347-1, EN-61347-2 approved | |||
| EMC Standards | EN55015, EN55022, EN55024, EN61000-2, EN61000-3, EN61547 approved | |||
| Weight | 0.85Kgs | |||
