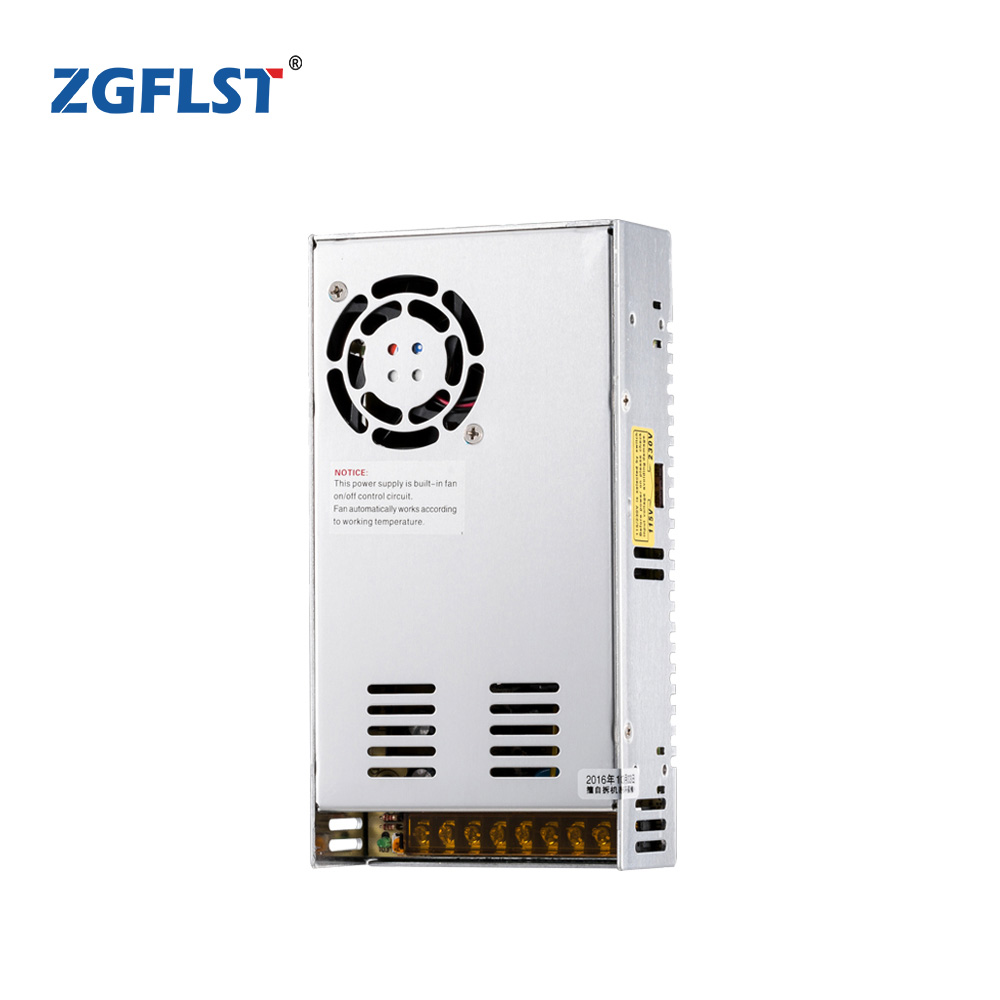

LRS-450 450w AC to DC single output switching power supply

Description:

The LRS-450W series adopt an outward FAN cooling dissipation design. This design greatly improves the stability of the product.
we are adamant about maintaining quality power supplies with a maximum efficiency of 92%.
In addition, the LRS-450W implements 3 seconds constant current limit for overload protection and enhances greater flexibility when dealing with inductance and capacitance loads.

Inquiry >

Type and Specification

Specification/Model	LRS-450-12	LRS-450-15	LRS-450-24	LRS-450-36	LRS-450-48
DC Output Voltage	12V	15V	24V	36V	48V
DC Output Current	37.5A	30A	18.8A	12.5A	9.4A
Current Range	0-37.5A	0-30A	0-18.8A	0-12.5A	0-9.4A
DC Output Wattage	450W	450W	451.2W	450W	451.2W
Wave And Noise	150mVp-p	150mVp-p	180mVp-p	240mVp-p	240mVp-p
Voltage Tolerance	±1.5%	±1.5%	±1%	±1%	±1%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±1%	±1%	±0.5%	±0.5%	±0.5%
Efficiency	82.00%	82.00%	86.00%	87.00%	88.00%
Setup Rise Time	1500ms,30ms/230VAC；2000ms,50ms/115VAC
Hold Uptime	5ms/230VAC, 5ms/115VAC
Input Voltage Range	95～132VAC/180～264VAC or 255～370VDC
Frequency Range	47～63Hz
Input Current	10A/115V 5.0A/230V
Inrush Current	Cold start 35A/115V，65A/230V
Leakage Current	＜3.5mA/240VAC
Overload	110%～135% hiccup mode recovers automatically after the fault condition is removed
Overvoltage	115%～135% hiccup mode recovers automatically after the fault condition is removed
Over-temperature	≥55℃fan on, ≤45℃fan off, ≥85℃over temperature protection hiccup mode, recovers automatically after fault condition is removed
Withstand Voltage	I/P-O/P: 1.5KVAC,
	I/P-FG: 1.5KVAC,
	O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
Working TEMP.	-10℃～+50℃, 20%～90%RH, No condensation
Dimension	21511550mm
Weight	1kg
