MS-150
Description:

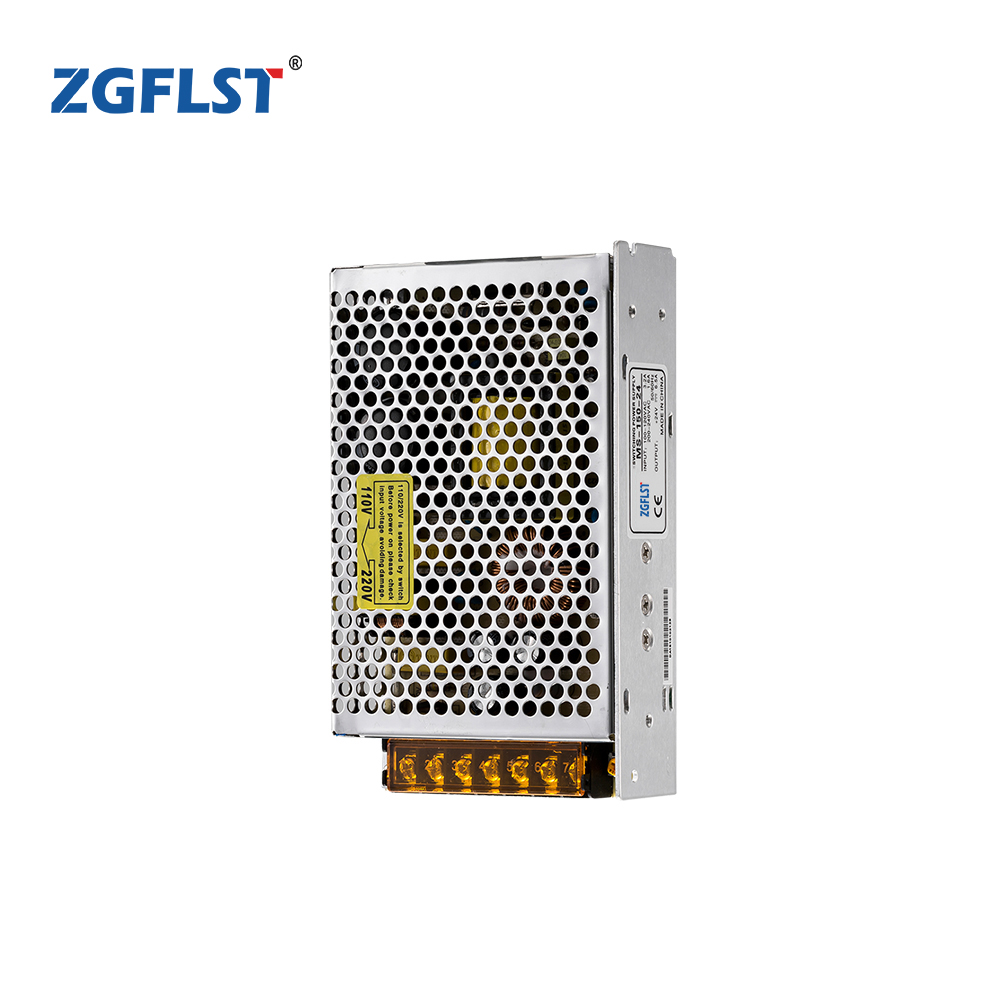

MS-150 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| SPEC | MODEL | MS-150-12 | MS-150-15 | MS-150-24 | MS-150-27 | MS-150-48 | MS-150-36 |
| Output | DC Voltage | 12V | 15V | 24V | 27V | 48V | 36V |
| Rated Current | 12.5A | 10A | 6.25A | 5.5A | 3.2A | 4.17A | |
| Current Range | 0-12.5A | 0-10A | 0-6.25A | 0-5.5A | 0-3.2A | 0-4.17A | |
| DC Power | 150W | 150W | 150W | 150W | 150W | 150W | |
| Voltage ADJ.Range | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ||
| Ripple And Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Intet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Intput | AC Voltage Range | 90~132VAC/180~264VAC 47~63Hz ; 254~370VDC | |||||
| Current | 15A/115V 30A/230V | ||||||
| Efficiency | 83% | 84% | 86% | 86% | 86% | 86% | |
| AC Inrush Current | Cold-start current 18A/115V 36A/230V | ||||||
| Leakage Current | < 1mA/240VAC | ||||||
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||||
| Over Voltage | 13.8~16.2V | 27.6~32.4V | 55.2~64.81 | ||||
| 200ms,50ms,20ms | |||||||
| Safety | Setup,Rise, | 200ms,50ms,20ms | |||||
| Hold Up Time | |||||||
| Vibration | 10~500Hz,2G 10min,/1 cycle | ||||||
| Withstand Voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | ||||||
| Isolation Resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||||
| W T | Temperature | ±0.03%/°C (0~50°C ) | |||||
| Coeffi Cient | |||||||
| Working | -10°C ~+50°C,20%~90%RH | ||||||
| Temperature | |||||||
| And Humidity | |||||||
| Store Temperature | -20°C ~+85°C,10%~95%RH | ||||||
| And Humidity | |||||||
| Overall Dimension | 159×98×38mm 30PCS/CARTON | ||||||
| Other | Weight | 0.55Kg | |||||
