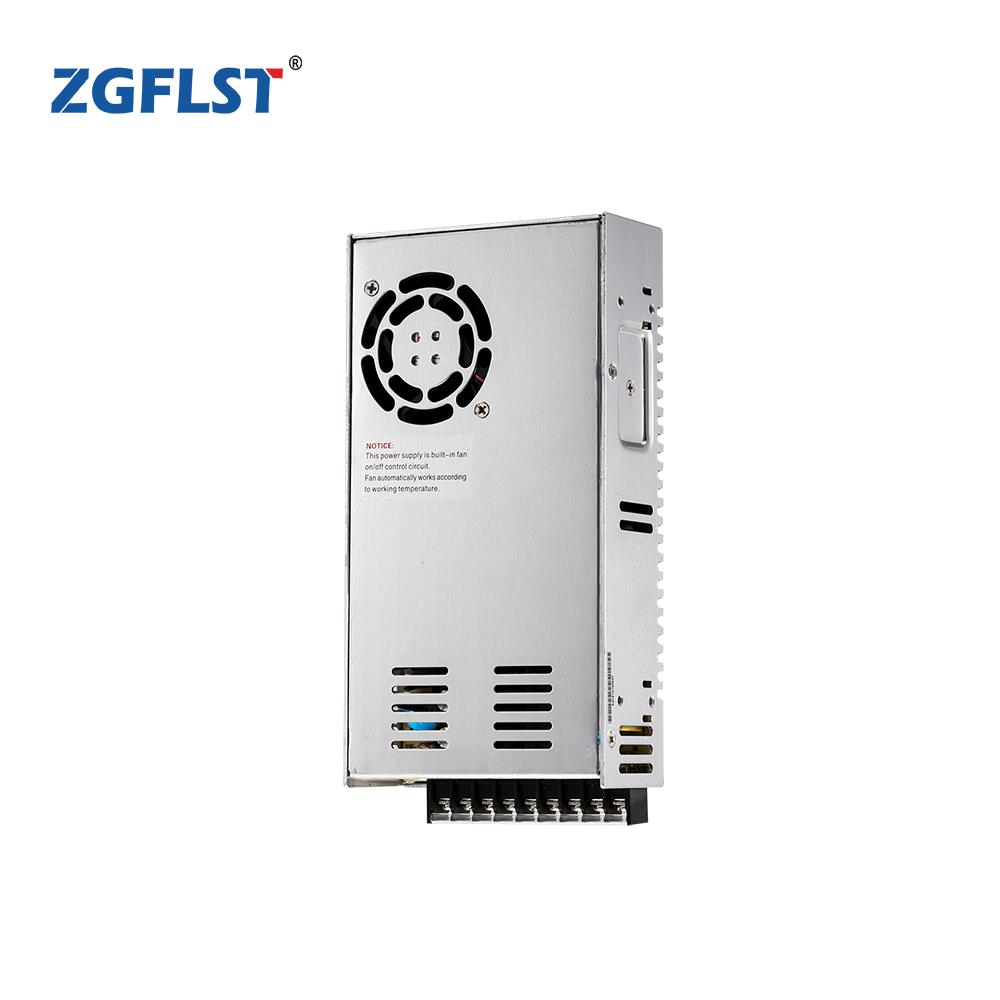

SP-320 320w single output with PFC function power supply
Description:
SP-320 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).
It has a wide range of protection functions against over/under voltage, over current, overload, overhead, and over temperature, as well as short circuits.
- Type and Specification
| Model | SP-320-5 | SP-320-12 | SP-320-24 | SP-320-48 |
| DC Voltage | 5V | 12V | 24V | 48V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Rated Current | 55A | 25A | 13A | 6.7A |
| Current Range | 0-55A | 0-25A | 0-13A | 0-6.7A |
| Rated Power | 275W | 300W | 312W | 321.6W |
| Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p |
| DC Adjustment Range | ±10% | -16%,±10% | -16%,±10% | -15%,±17% |
| Voltage Range | 88~264VAC selected by 47~63 Hz;120~370VDC | |||
| Power Factor | PF>0.95/230VAC,PF>0.98/115VAC at full load | |||
| AC Current | 5A/115VAC 2.5A/230VAC | |||
| Efficiency | 79% | 86% | 87% | 89% |
| Inrush Current | 22A/115VAC 40A/230VAC | |||
| Over Load | 105%~135% | |||
| Over Voltage | 115%~135% | |||
| Working Temp., Humidity | -20°C~+65°C; 20%~90 %RH | |||
| Storage Temp., Humidity | -40°C~+85°C; 10%~95 %RH | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes | |||
| Withstand Voltage | I/P-O/P: 3KVAC | |||
| I/P-FG: 1.5KVAC | ||||
| O/P-FG: 0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | |||
| Safety Standard | Design refer to UL60950, TUV EN60950 | |||
| EMC Standard | Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11; ENV50204,EN55024 | |||
| Dimension | 185*120*93mm | |||
| Weight | 1.8kg | |||
| Packing | 40*26*22cm/8pcs/14.5kg | |||
