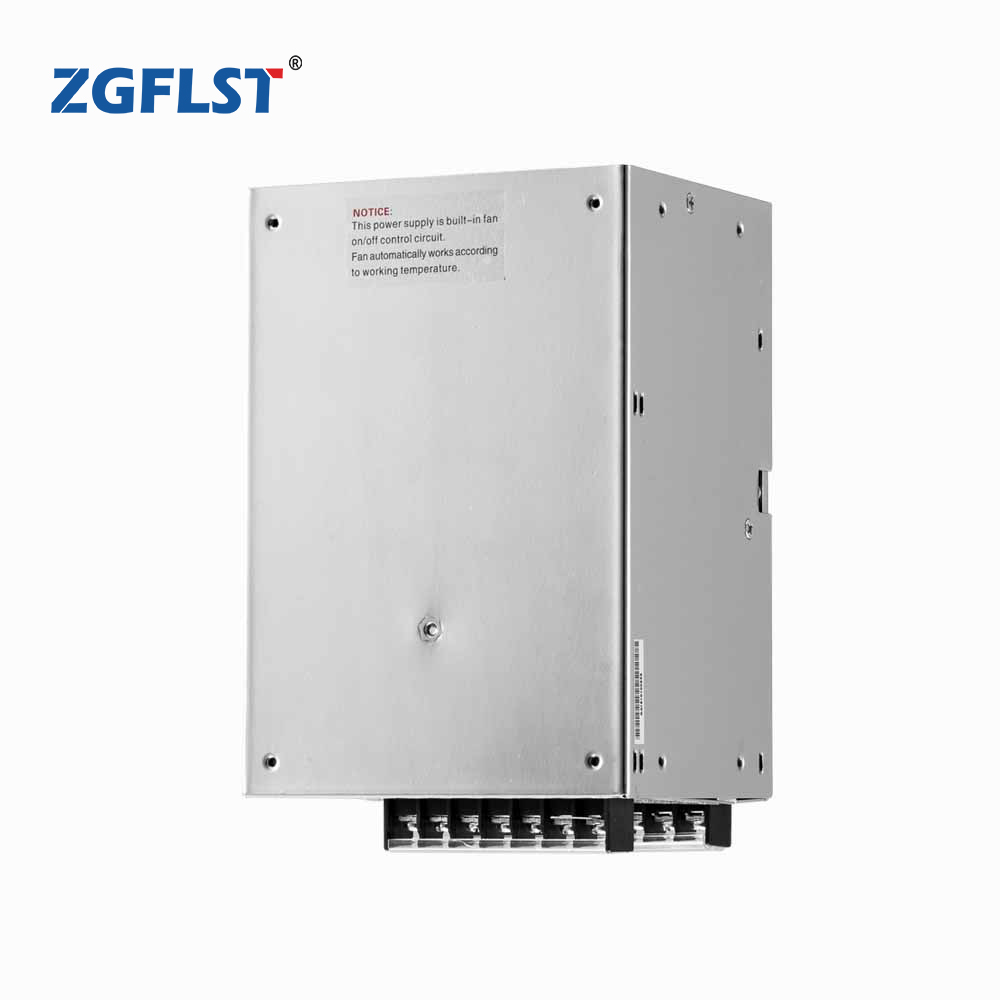

SP-600
Description:
SP-600 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).
It has a wide range of protection functions against over/under voltage, over current, overload, overhead, and over temperature, as well as short circuits.
- Type and Specification
| Model Specification | PSP-600-12 | PSP-600-13.5 | PSP-600-15 | PSP-600-24 | PSP-600-27 | PSP-600-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output Voltage Error | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 50A | 44.5A | 40A | 25A | 22.2A | 12.5A |
| Output Current Rage | 0-50A | 0-44.5A | 0-40A | 0-25A | 0-22.2A | 0-12.5A |
| Wave And Noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 480W | 486W | 480W | 480W | 486W | 480W |
| Efficiency | 84% | 84% | 83% | 85.50% | 86.50% | 87% |
| Adjustable Range For DC Voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| AC Input Voltage Range | 88132VAC/176264VAC BY SWITCH 4763Hz; 124370VDC | |||||
| AC Input Current | 7A/115V | |||||
| 3.5A/230V | ||||||
| Power Factor | 0.95/100240VAC | |||||
| AC impulse current | 18A/115V | |||||
| 36A/230V | ||||||
| Leakage current | <3.5mA/240VAC | |||||
| Overload protection | 105%135% TypePULSING HICCUP SHUTDOWN Reset: auto-recovery | |||||
| Over-voltage protection | 13.816.2V | 15.518.2V | 1821V | 27.632.4V | 3136.5V | 57.667.2V |
| Fan control,O.T.P. | RTH1 OR RTH2>=50 FAN ON, <=45 FAN OFF, >=70 Cut off output | |||||
| Temperature coefficient | ±0.03% (050) | |||||
| Setup rise hold up time | 1.5s, 50ms, 20ms | |||||
| Vibration | 10500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES | |||||
| Withstand voltage | Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC | |||||
| Isolation Resistance | Input and output interval, Input and enclosure, Output and enclosure500VDC/100M Ohms | |||||
| Working Temperature And Humidity | -10+50, 20% 90% RH | |||||
| Store Temperature And Humidity | -20+85,10% 95% %RH | |||||
| Overall Dimension | 170*120*93mm | |||||
| Weight | 1.9Kgs | |||||
| Safety Standards | EN60950 | |||||
| EMC Standards | EN55022, EN61000, EN55024 | |||||
