- Type and Specification
| Type | Rated | Conventional | Rated | Control power(kw) | No .of | ||||
| insulation | thermal | operation | contacts | ||||||
| voltage(V) | current(A) | current(A) | 220V | 380V | 415V | 440V | 660V | ||

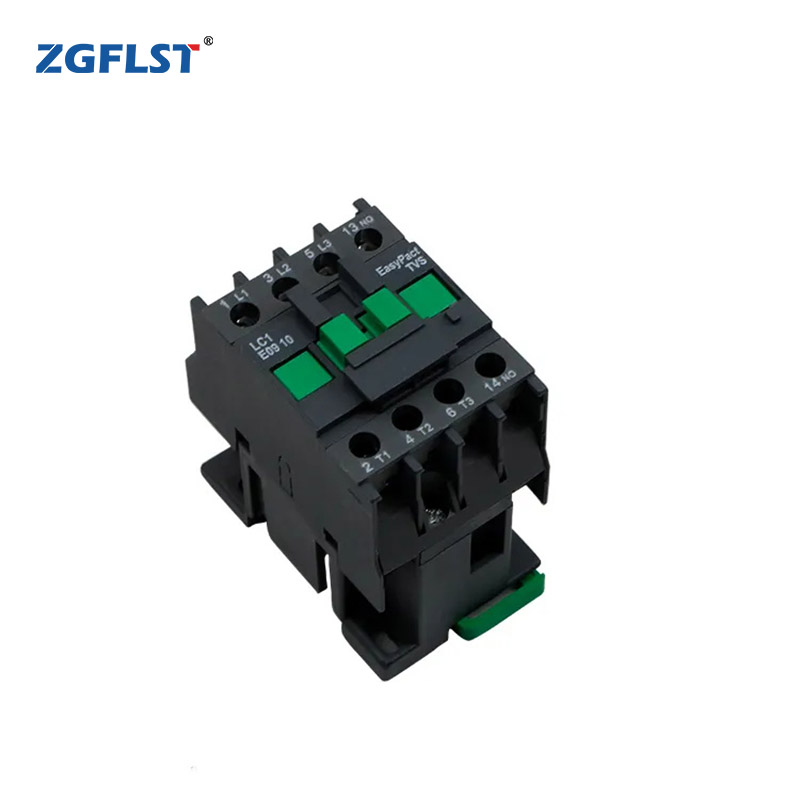

| LC1-E0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO |
| 3P+NC | |||||||||
| LC1-E1210 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO | |
| 3P+NC | |||||||||
| LC1-E1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO | |
| 3P+NC | |||||||||
| LC1-E2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO | |
| 3P+NC | |||||||||
| LC1-E3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO | |
| 3P+NC | |||||||||
| LC1-E4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | |
| LC1-E5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
| LC1-E6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
| LC1-E8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
| LC1-E9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
