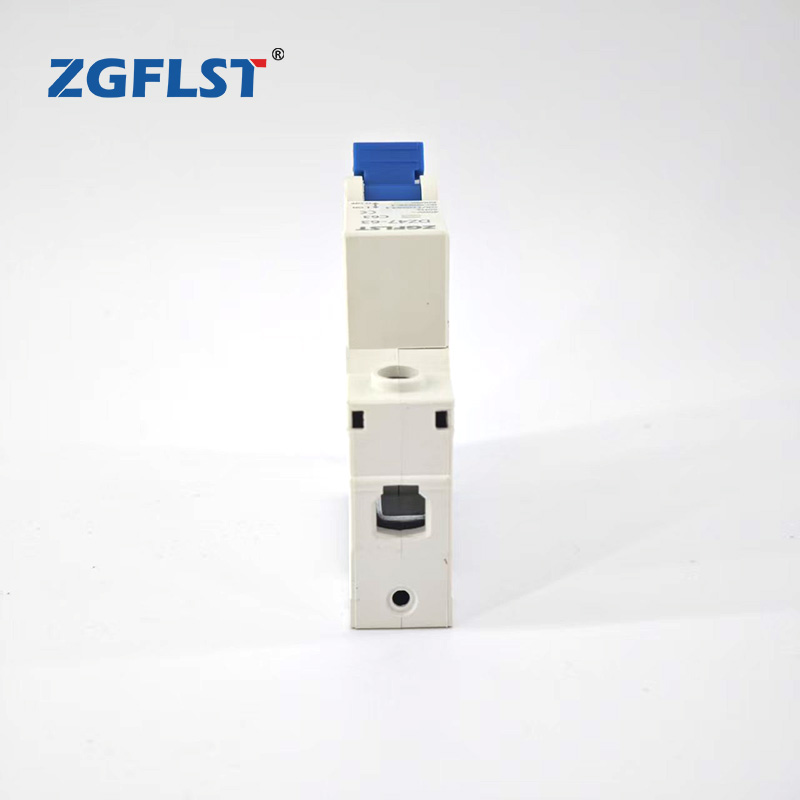

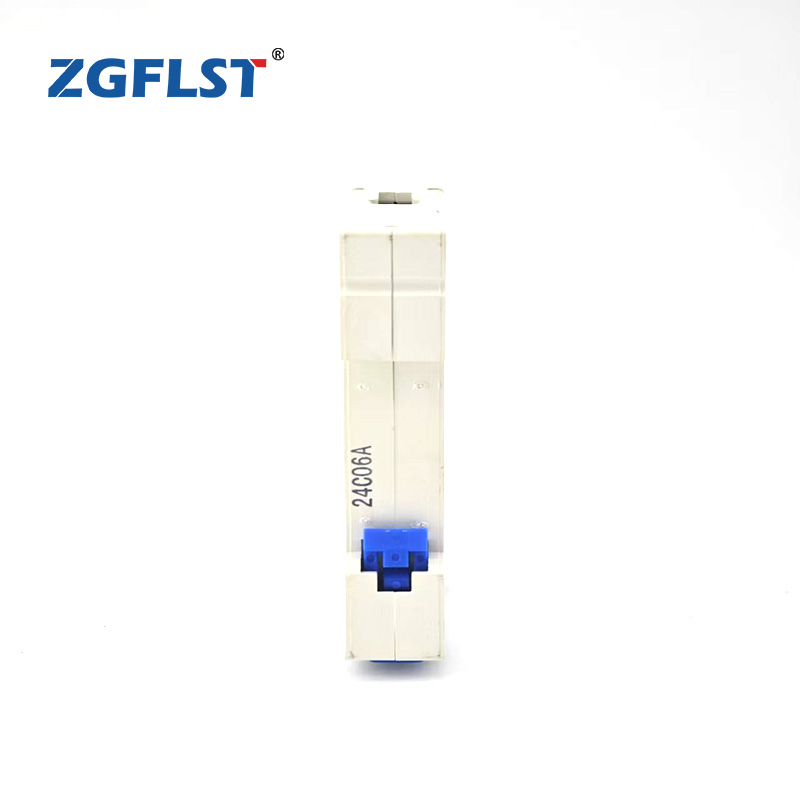

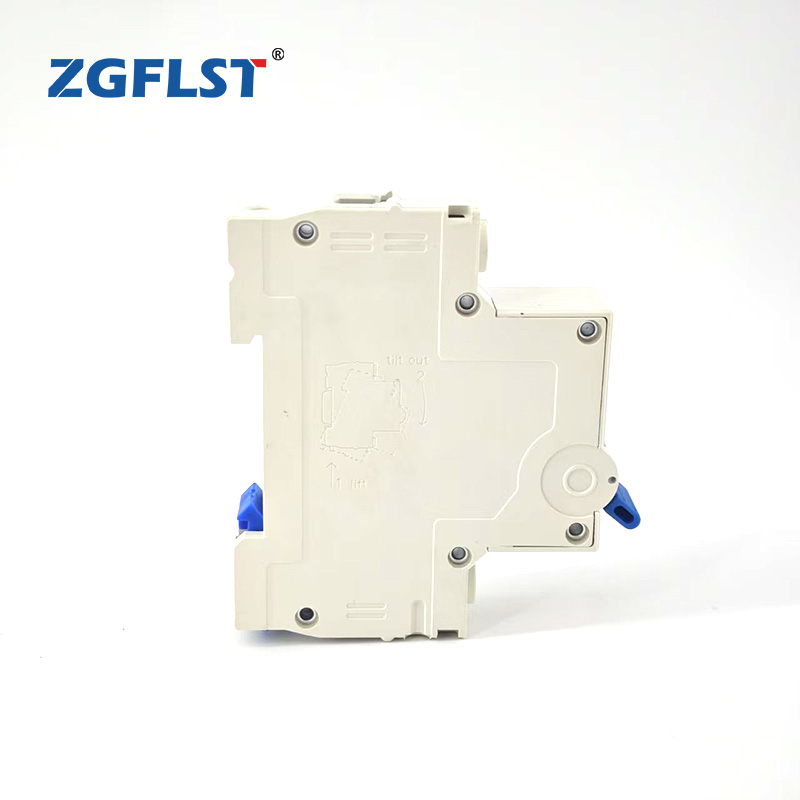

DZ47-63 1P
Description:
DZ47-63 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V 3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.
- Type and Specification
| Model | DZ47-63 MCB |
| Standard | IEC60898 |
| Pole | 1P,2P,3P,4P |
| Rated Short-circuit capacity(Icn) | 3KA,4.5KA,6KA |
| Rated Current(In) | 1,2,4,6,10,16,20,25,32,40,50,63A |
| Rated Voltage(Un) | AC230(240)/400(415)V |
| Rated Frequency | 50/60HZ |
| Tripping curve | B,C,D |
| Magnetic releases | B curve: between 3and 5 In |
| C curve: between 5and 10In | |
| D curve: between 10 and 14In | |
| Electro-mechanical endurance | over 6000 cycles |
