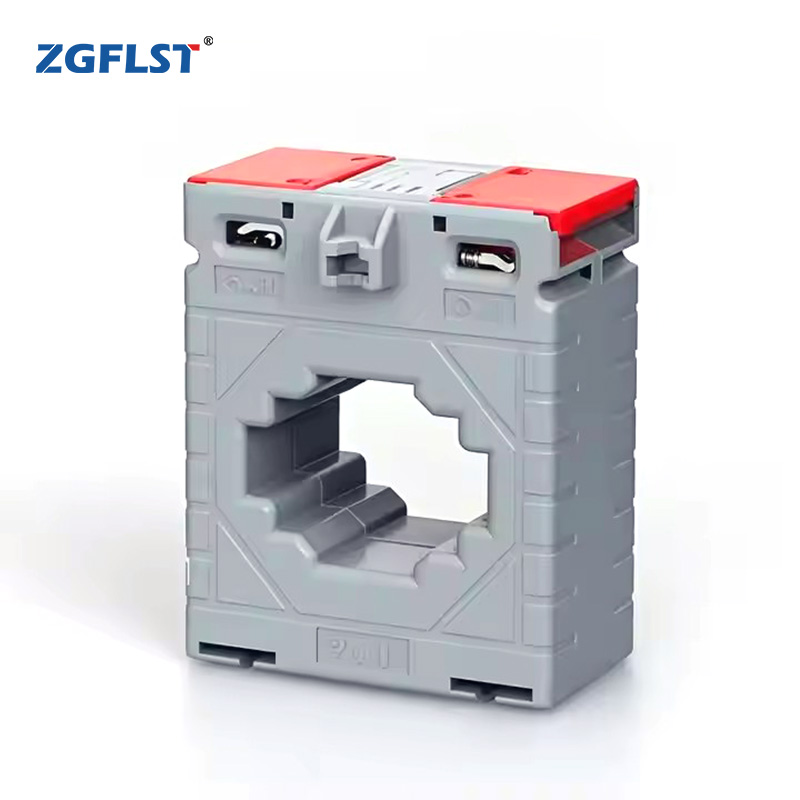

MES-62/40 CP-62/40
Description:
Current transformers of MES/CP type are compact-smaller than other models with the current ratio of the transformer is small Clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting a current from 5A to 4000A.
The MES/CP model of low voltage current transformers is a highly reliable and versatile device used for precise current measurement in the range of 5-3000A.
With its robust construction and advanced design,the MES/CP current transformers ensures accurate and consistent measurements even in demanding environments.
MES/CP current transformers provides electrical isolation for enhanced safety and offers excellent linearity and accuracy across the entire measurement range.
- Type and Specification
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | -10℃ to 50℃ |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| MES-62/B | 5/5A~150/5A | busbar | 1.5~2.5 | 0.5 /1.0 | 0.72KV(AC) |
| MES-62/20 | 30/5A~200/5A | ø=20mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| MES-62/30 | 30/5A~200/5A | ø=30mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| MES-62/40 | 60/5A~300/5A | ø=40mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| MES-80/30 | 30/5A~200/5A | ø=30mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| MES-80/40 | 100/5A~500/5A | ø=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| MES-100/60 | 400/5A~1600/5A | ø=60mm | 3.75~20 | 0.5/1.0 | 0.72KV(AC) |
| MES-104/80 | 600/5A~2000/5A | ø=80mm | 10~20 | 0.5/1.0 | 0.72KV(AC) |
| MES-145/100 | 800/5A~3000/5A | ø=100mm | 15~25 | 0.5/1.0 | 0.72KV(AC) |
