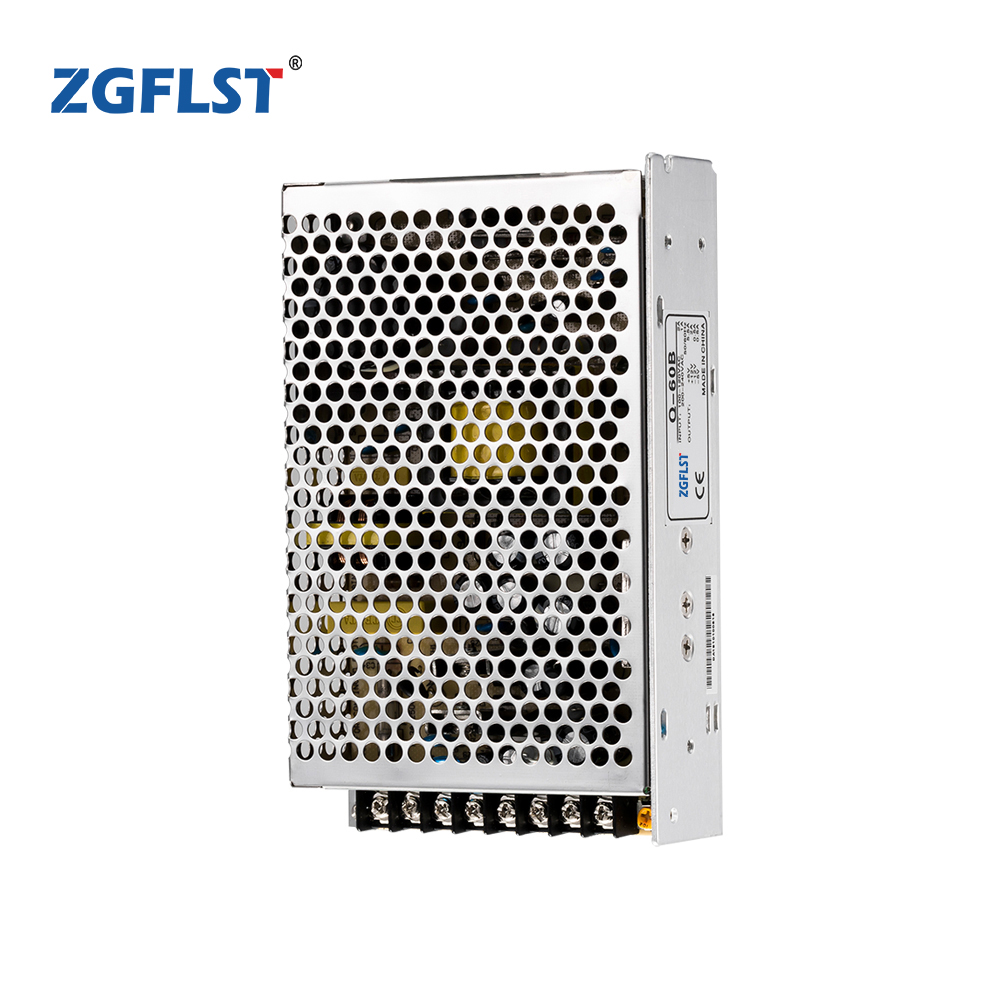

Q-60
Description:
Q-60 Series is an AC/DC multi-output Power supply that standard models offer.
Q-60 are available multiple output supplies that can be configured into many combinations and up to 4 outputs.
We focuses on producing high-quality power adapters, and stable output.
They are highly flexible and compact, fanless power supplies ideal it offers extreme flexibility.
- Type and Specification
| Model | Q-60B | Q-60C | |||||||
| CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | ||
| Output | DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V |
| Voltage Tolerance | ±2% | ±6% | ±5% | ±5% | ±2% | ±6% | ±5% | ±5% | |
| Rated Current | 5.5A | 2A | 0.5A | 0.5A | 5.5A | 1.5A | 0.5A | 0.5A | |
| Current Range | 0.5-8A | 0.1-3A | 0-1A | 0-1A | 0.5-8A | 0.1-3A | 0-1A | 0-1A | |
| Rated Power | 60W | 60W | 60W | 60W | 65W | 65W | 65W | 65W | |
| Ripple & Noise (Max) | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | |
| DC Volatagefre Quencyrange | CH1: +10, -5% | ||||||||
| Setup, Rise, Hold Time | 1.6ms, 20ms, 12ms/115VAC800ms, 20ms, 60ms/230VAC | ||||||||
| Input | Voltage Range | 85~264 VAC47-63Hz; 20~370VDC | |||||||
| AC Current | 1.3A/115 V0.8A/ 230 V | ||||||||
| Efficiency | 70% | ||||||||
| Inrush Current | Cold start 18A/115V36A/230V | ||||||||
| Protection | Overload Protection | 150%~200% /115VAC Shut down O/P voltage, re-power on to recover | |||||||
| Over – Voltage Protection | CH1: 5.75~6.75V | ||||||||
| Environment | Working Temp & Humidity | -10°C~+50°C; 20%~90%RH | |||||||
| Storage Temp & Humidity | -20°C~+85°C; 10%~95%RH | ||||||||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X.Y.Z axes | ||||||||
| Safety | Withstand Voltage | I/P-O/P: 3KVAC | |||||||
| I/P-FG: 0.5KVAC | |||||||||
| O/P-FG: 0.5KVAC | |||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ | ||||||||
| Standards | Safety Standards | Design refers to UL1950 | |||||||
| EMC Standards | Design refer to EN55022, EN55024, EN61000, IEC801-2, 3, 4IEC555-2 | ||||||||
| Others | Weight | 0.56Kg | |||||||
| Packing | 30pcs/ctn | ||||||||
