Q-120
Description:

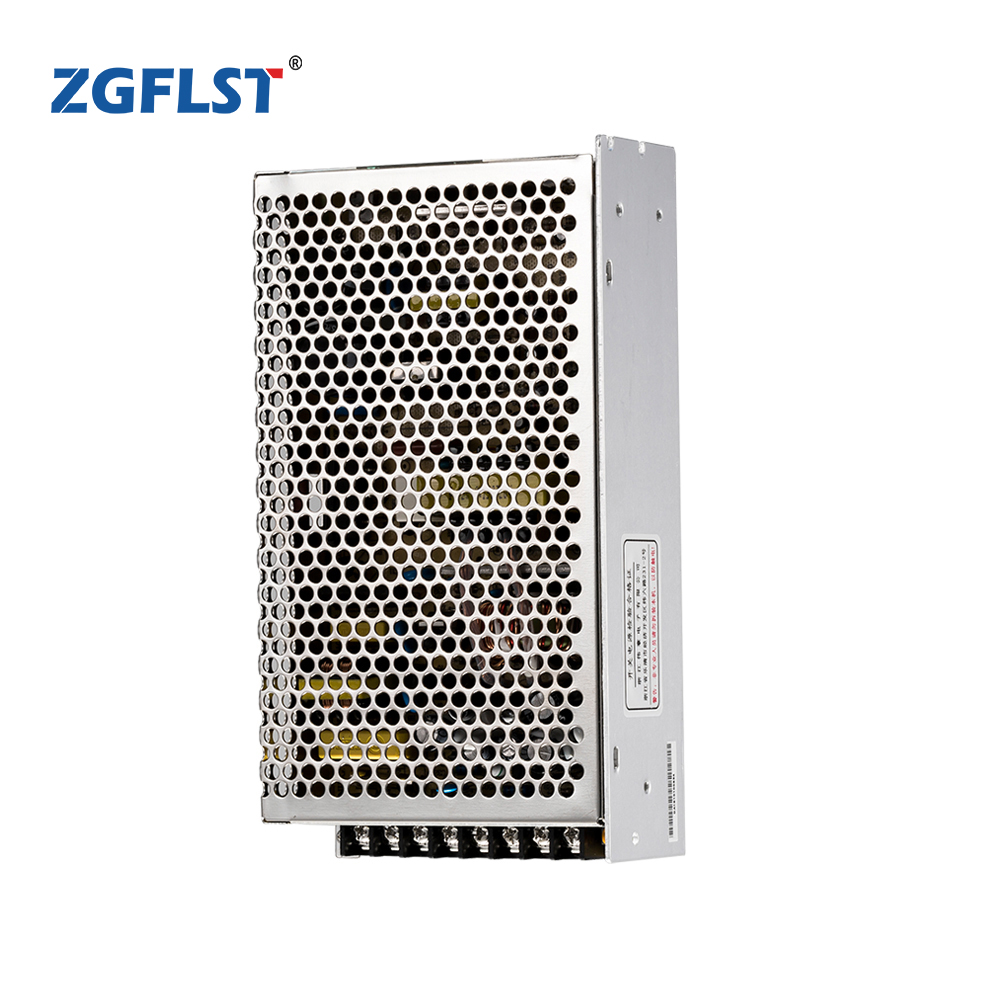

Q-120 Series is an AC/DC multi-output Power supply that standard models offer.
Q-120 are available multiple output supplies that can be configured into many combinations and up to 4 outputs.
We focuses on producing high-quality power adapters, and stable output.
They are highly flexible and compact, fanless power supplies ideal it offers extreme flexibility.
- Type and Specification
| Model | Q-120B | Q-120C | Q-120C | |||||||||
| CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | |
| DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Voltage Tolerance | ±2% | ±6% | ±6% | ±6% | ±2% | +10%, -5% | ±6% | +10% ,-5% | ±2% | ±6% | ±6% | ±6% |
| Rated Current | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A |
| Current Range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A |
| Ripple & Noise | 80 MVP-p | 120 MVP-p | 80 MVP-p | 120 MVP-p | 80 MVP-p | 150 MVP-p | 80 MVP-p | 150 MVP-p | 80 MVP-p | 120 MVP-p | 180 MVP-p | 120 MVP-p |
| DC Adjustment Range | CH1: -5%, +10% | |||||||||||
| Setup, Rise, Hold Time | 200ms, 50ms, 20ms at full load | |||||||||||
| Voltage Range | 88~132 VAC / 176~264 VAC47-63Hz; selected by switch 240~370VDC | |||||||||||
| AC Current | 2.8A/115 V1.6A/ 230 V | |||||||||||
| Efficiency | 77% | 76% | 80% | |||||||||
| Inrush Current | Cold start 35A | |||||||||||
| Leakage Current | <3.5mA/240VAC | |||||||||||
| Over Load | 105% ~ 135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Over Voltage | CH1: 115% ~ 135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Working Temp., Humidity | -10 ~ +50 20%~90%RH | |||||||||||
| Storage Temp., Humidity | -20~+85 10%~95 %RH | |||||||||||
| Vibration | 10~500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes | |||||||||||
| Withstand Voltage | I/P-O/P:3KVAC | |||||||||||
| I/P-FG: 1.5KVAC | ||||||||||||
| O/P-FG: 0.5KVAC | ||||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
| Safety Standard | Design refers to 1950, TUV EN60950 | |||||||||||
| EMC Standard | Design reefer to EN55022(CISPR22), EN61000-3-2, -3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204 | |||||||||||
| Weight | 0.9Kg | |||||||||||
| Packing | 42*31.5*26CM/20PCS/18KG | |||||||||||
