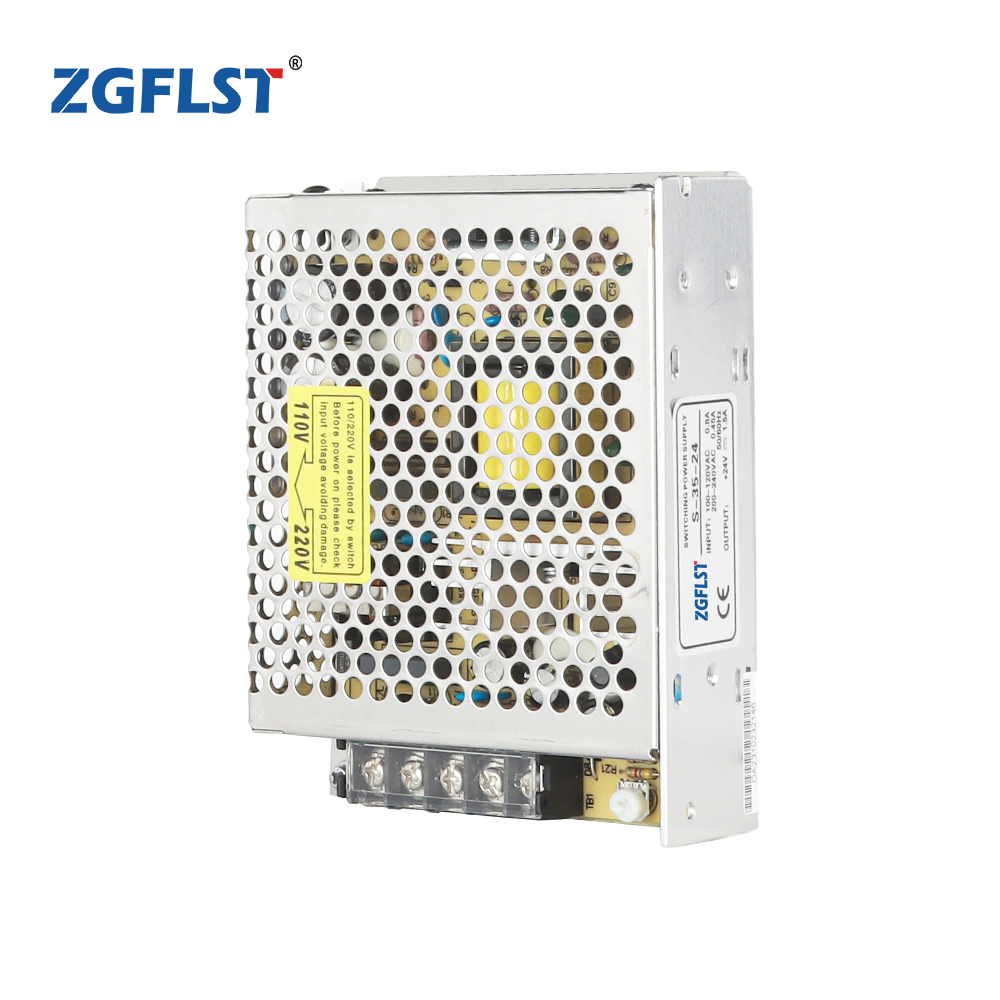

S-35 35W single switching power supply
Description:
S-35W is Enclosed switching power supply Low price and high reliability 105℃ output capacitor AC input power .
A Switching Power Supply which can keep the voltage stability.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply 110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-35-5 | S-35-9 | S-35-12 | S-35-15 | S-35-24 | |
| Output | DC Voltage | 5V | 9V | 12V | 15V | 24V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 7A | 3.6A | 3A | 2.4A | 1.5A | |
| Current Range | 0-7A | 0-3.6A | 0-3A | 0-2.4A | 0-1.5A | |
| Rated Power | 35W | 32.4W | 36W | 36W | 36W | |
| Ripple & Noise (Max) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| DC Voltagefre Quency Range | +10,-5% | ±10% | ±10% | ±10% | ±10% | |
| Setup, Rise Hold Time | 200ms, 100ms, 300ms | |||||
| Input | Voltage Range | 85~132 VAC/170~264VACselected47~63 Hz 240~370VDC | ||||
| AC Current | 0.8A/115V | |||||
| 0.45A/230V | ||||||
| Efficiency | 70% | 72% | 76% | 78% | 78% | |
| Inrush Current | Cold start: 18A/115V | |||||
| 36A/230V | ||||||
| Leakage Current | <2mA/240VAC | |||||
| Environment | Working Temp & Humidity | -10°C ~ +60°C, 20%~90 %RH | ||||
| Storage Temp & Humidity | -20°C ~ +85°C, 10%~95 %RH | |||||
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min, each along the X, Y, and Z axes | |||||
| Standards | Safety Standards | Design refers to UL1012 | ||||
| EMC Standards | Design refers to FCC part15 J Conduction Class B | |||||
| Others | Weight | 0.41Kg | ||||
| Packing | 30pcs/13.5Kg/0.86CUFT | |||||
| Note | 1. Tolerance: Includes set-up tolerance, line regulation, and load regulation. | |||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. | ||||||
