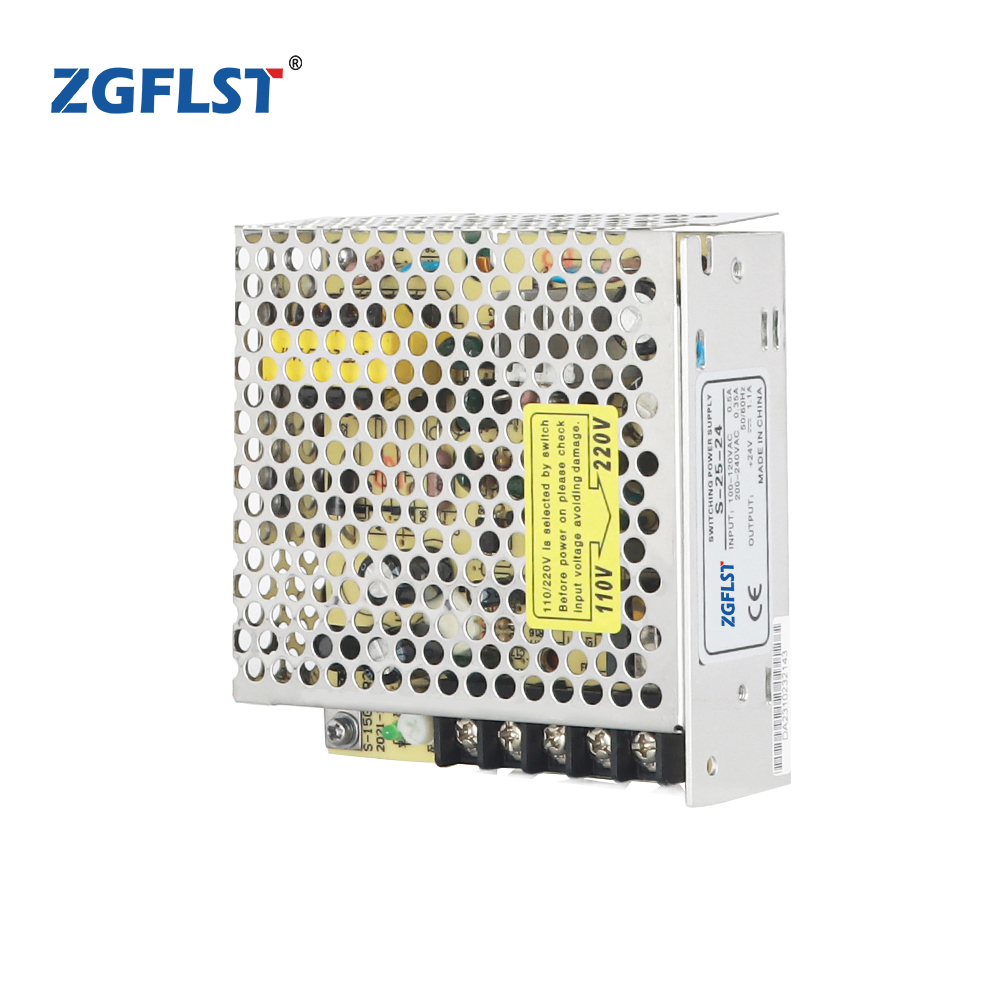

S-25 25W single switching power supply
Description:
S-25W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-25-5 | S-25-12 | S-25-15 | S-25-24 |
| DC Output Voltage | 5V | 12V | 15V | 14V |
| Rated Output Current | 5A | 2.1A | 1.67A | 1.1A |
| Output Current Rage | 0-5A | 0-2.1A | 0-1.67A | 0-1.1A |
| Wave And Noise | 50mVp-p | 50mVp-p | 75mVp-p | 100mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 70% | 76% | 78% | 78% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | AC90~240V 180~264VDC by switch: 47~63Hz; | |||
| Input Current | 0.5A/115V | |||
| 0.25A/230V | ||||
| AC INnrush Current | Cold-start current: 15A/115V | |||
| 30A/230V | ||||
| Overload Protection | 105%~150% | |||
| Type: Foldback current limiting | ||||
| Over-Voltage Protection | Reset: auto-recovery | |||
| Setup Rise Hold-Up Time | 200s, 100ms, 30ms | |||
| Working Temperature | -10°C ~ +50°C | |||
| Overall Dimension | 98*97*35mm | |||
| Safety Standards | Meet ULGB4943 UL60950 EN60950 requirement | |||
| EMC Standards | Meet EN55022 GB9254 class A requirement | |||
| Weight | 0.3Kgs | |||
