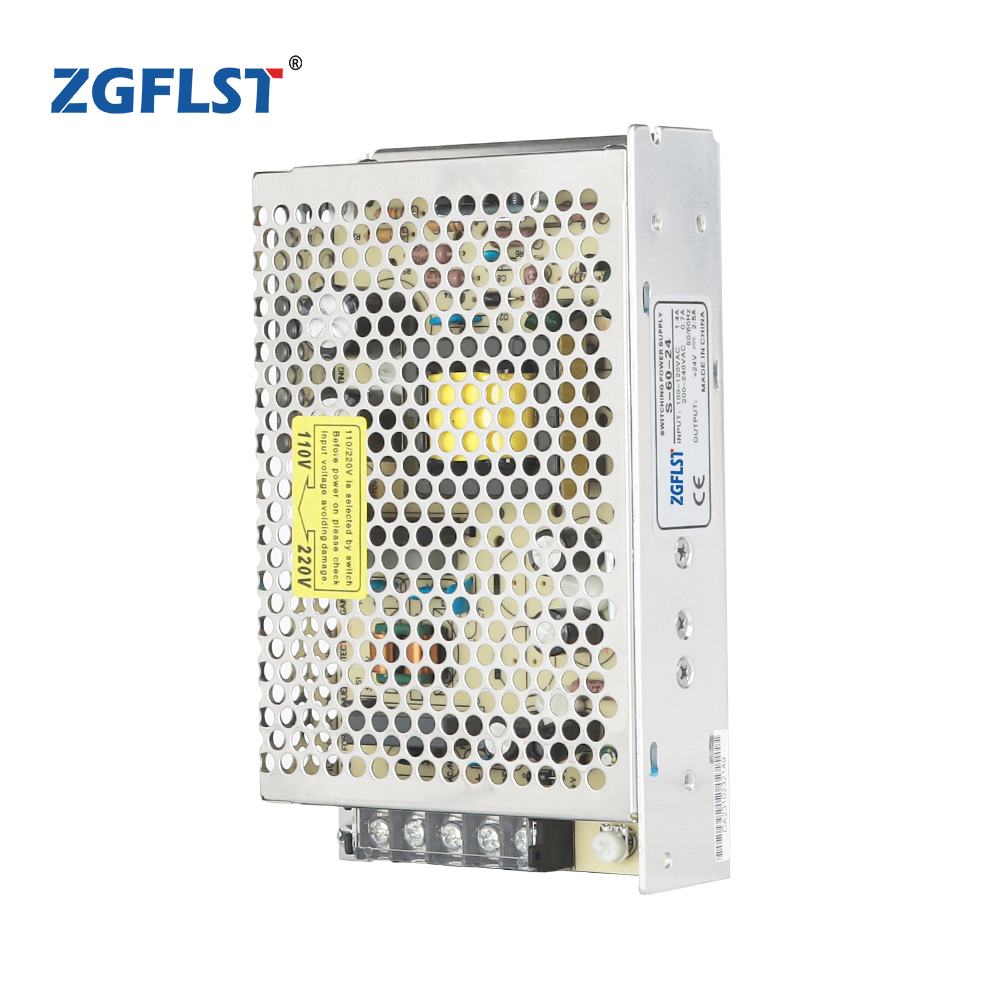

S-60 60W single switching power supply
Description:
S-60W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-60-5 | S-60-12 | S-60-15 | S-60-24 |
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Rated Output Current | 12A | 5A | 4A | 2.5A |
| Output Current Rage | 0-12A | 0-5A | 0-4A | 0-2.5A |
| Wave And Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 71% | 78% | 78% | 82% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | AC100~240V 47~63Hz; 240~370VDC | |||
| Input Current | 2A/115V | |||
| 1A/230V | ||||
| AC INnrush Current | Cold-start current: 18A/115V | |||
| 36A/230V | ||||
| Overload Protection | 105%~150% | |||
| Type: Foldback current limiting | ||||
| Reset: auto-recovery | ||||
| Overall Dimension | 159*98*38mm | |||
| Safety Standards | Meet ULGB4943 UL60950 EN60950 requirement | |||
| EMC Standards | Meet EN55022 GB9254 class A requirement | |||
| Weight | 0.5Kgs | |||
