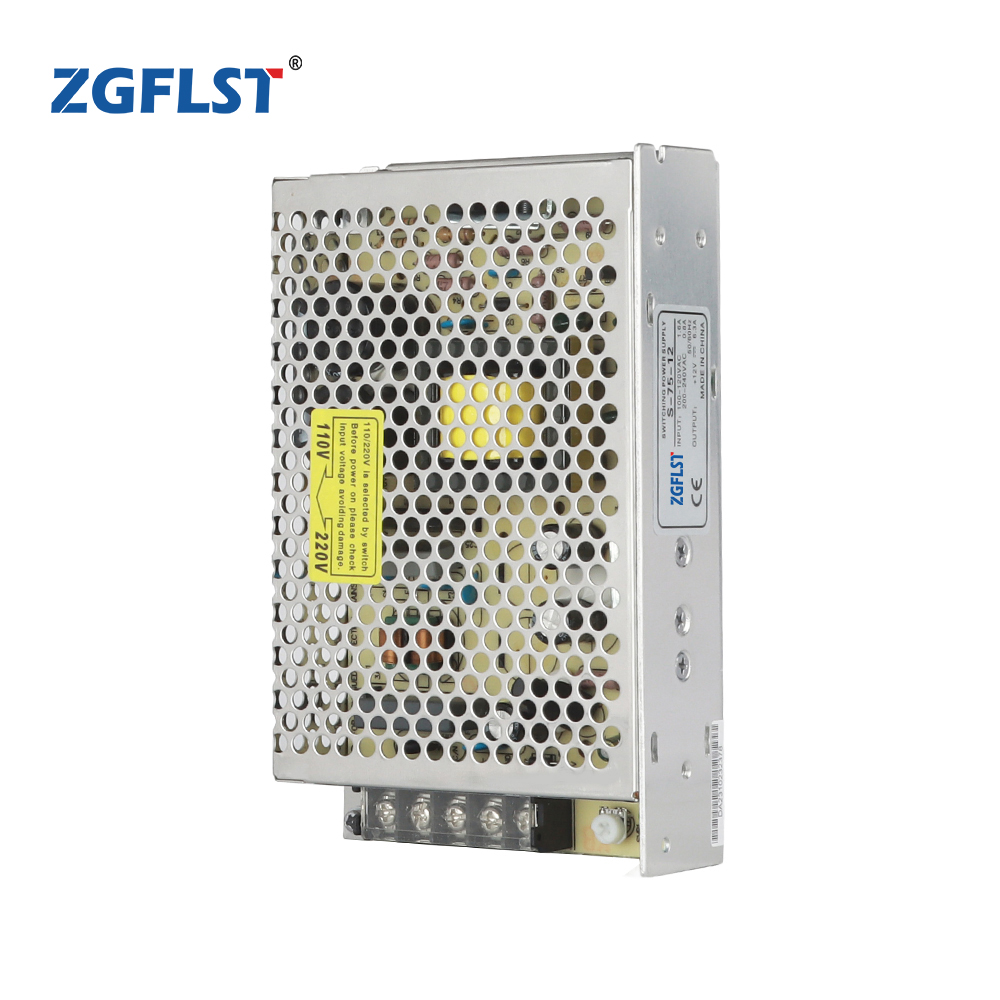

S-75 75W single switching power supply
Description:
S-75W Switching Power Supply is a reliable switching power supply with high-quality material, durable and safe to use.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for home appliances.
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-75-12 | S-75-15 | S-75-24 | S-75-48 |
| DC Output Voltage | 12V | 15V | 24V | 48V |
| Rated Output Current | 6A | 5.0A | 3A | 1.5A |
| Output Current Range | 0-6A | 0-5A | 0-3A | 0-1.5A |
| Wave And Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 79% | 82% | 83% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||
| AC Inrush Current | Cold-start current: 15A/115V | |||
| 30A/230V | ||||
| Overload protection | 105%~150% | |||
| Type: pulsing hiccup shut down | ||||
| Reset: auto-recovery | ||||
| Setup Rise Hold-Up Time | 200ms, 50ms, 20ms | |||
| Withstand Voltage: Input And Output Internal | 1.5KvAC, Output, and enclosure: 0.5KvAC | |||
| Isolation Resistance | Input and output internal, input and enclosure, output and enclosure:500VDC/100MΩ | |||
| Working Temperature | 0~50°C | |||
| Safety Standards | GB4943 UL60950 EN60950 | |||
| EMC Standards | EN55022 GB9254, class A | |||
| Overall Dimension | 159*97*38mm | |||
| Weight | 0.56Kgs | |||
