S-120
Description:

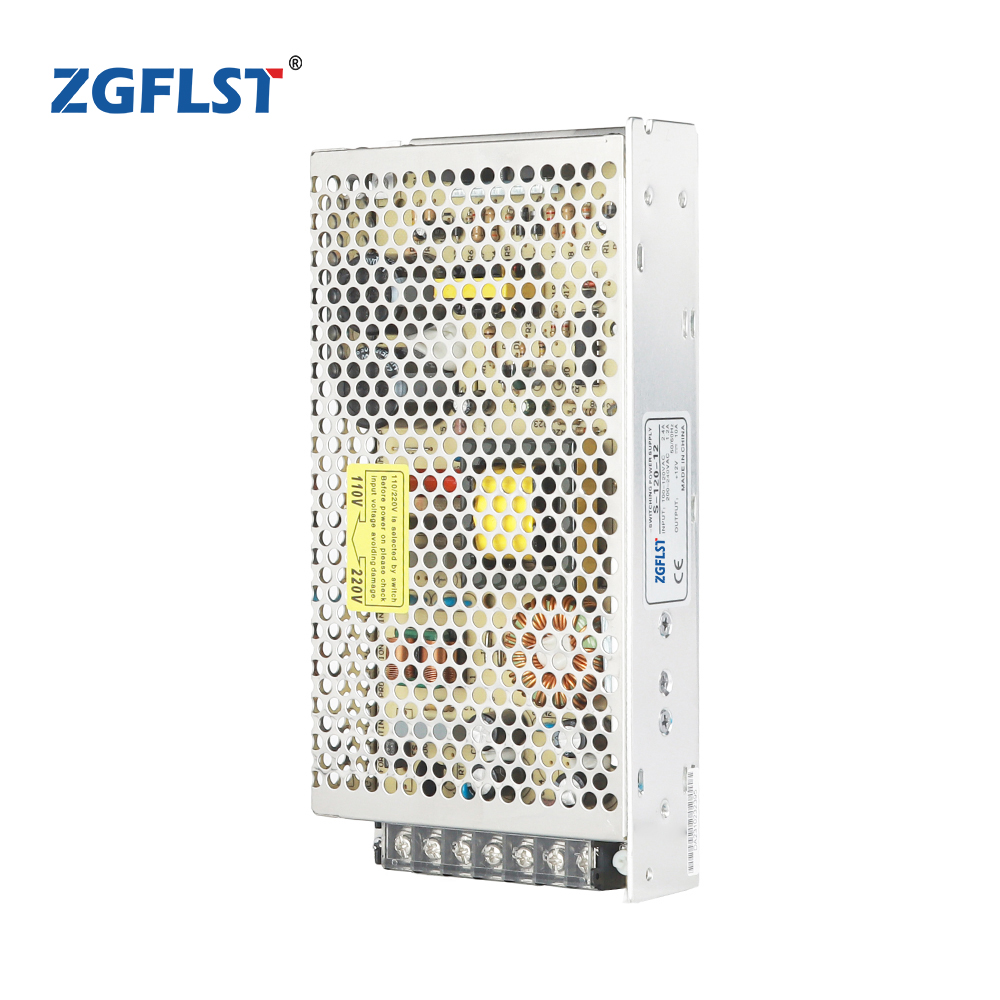

S-120W Switching Power Supply is the most widely used power supply
It has high efficiency, stable quality, and a wide range of uses.
It can be used in LED, industry, automation, industrial control, monitoring, network communication, and other fields.
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-120-5 | S-120-12 | S-120-15 | S-120-24 |
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Output Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Rated Output Current | 24A | 10A | 8A | 5A |
| Output Current Range | 0-24A | 0-10A | 0-8A | 0-5A |
| Ripple And Noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
| Load Stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
| DC Output Power | 120W | 120W | 120W | 120W |
| Efficiency | 79% | 84% | 85% | 85% |
| Output Voltage Adjustment Range | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 85~132VAC, | |||
| 170~265VAC, | ||||
| 47~63VAC, | ||||
| 120~370VDC | ||||
| Input Current | 0.6A/115V | |||
| 0.35A/230V | ||||
| AC Impulse Current | Cold-start current: 15A/115V | |||
| 30A/230V | ||||
| Leakage Current | <0.75mA/240VAC | |||
| Setup Rise Hold-Up Time | 800ms,50ms, 20ms/115VAC | |||
| 300ms,50ms, 80ms/230VAC | ||||
| Vibration | 10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes | |||
| Withstand Voltage | I/P-O/P: 2.5KVAC | |||
| I/P-FG: 2KVAC | ||||
| O/P-FG: 0.5KVAC | ||||
| Isolation Resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
| Working Temperature And Humidity | -10°C ~ +60°C, 20%~90%RH | |||
| Store Temperature And Humidity | -20°C ~ +85°C, 10%~95%RH | |||
| Overall Dimension | 199*98*38mm / 30pcs per carton | |||
| Weight | 0.62Kgs | |||
