S-100
Description:

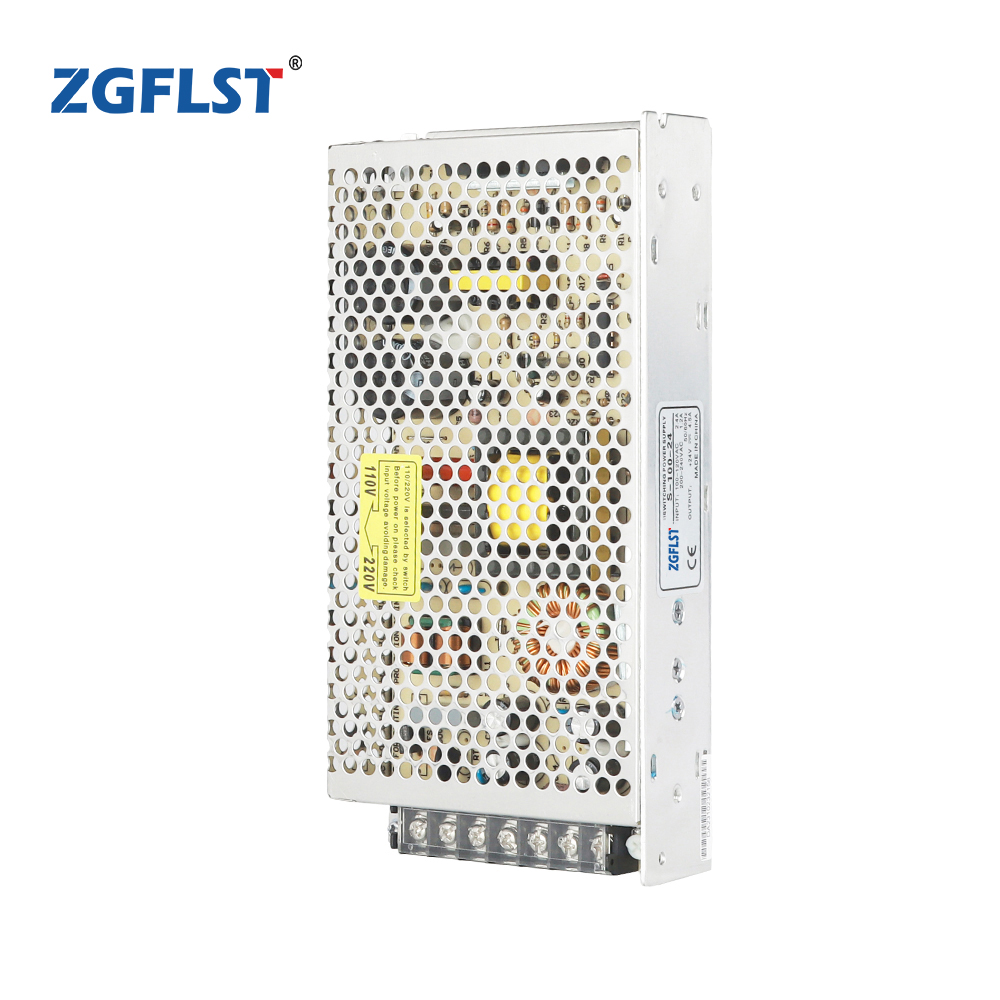

S-100W Switching Power Supply is a reliable switching power supply with high-quality material, durable, and safety to use.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-100-3 | S-100-5 | S-100-7.5 | S-100-12 | S-100-15 | S-100-24 | S-100-27 | S-100-48 |
| DC Output Voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
| Output Voltage Range (Note:2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Wave And Noise (Note:3) | 150mV | 150mV | 150mV | 150mV | 150mV | 150mV | 200mV | 240mV |
| Inlet Stability (Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load Stability (Note:5) | ±1% | ±1% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.3% | ±0.2% |
| DC Output Power | 60W | 100W | 102W | 102W | 100.5W | 108W | 99.9W | 96W |
| Efficiency | 70% | 78% | 81% | 81% | 81% | 84% | 84% | 84% |
| Adjustable Range | 2.85~3V | 4.75~5.5V | 6.75~8.25V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 26~32V | 43.2~52.8V |
| For DC Voltage | ||||||||
| Input Current | 2.4A/115V | |||||||
| 1.2A/230V | ||||||||
| AC Inrush Current | Cold-start current: 30A/115V | |||||||
| 60A/230V | ||||||||
| Leakage Current | <1mA/240VAC | |||||||
| Overload Protection | 105%~150% | 150%~200% | 105%~150% | |||||
| Type: Output shut down | ||||||||
| Reset: Recycle AC ON/OFF | ||||||||
| Temperature Coefficient | ±0.03%/°c(0~50°c) | |||||||
| Setup, Rise, Hold Up Time | 200ms,100ms, 30ms | |||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||||||
| Withstand Voltage | Input and output internal: 1.5KvAC, | |||||||
| Input and enclosure: 1.5KvAC, | ||||||||
| Output and enclosure: 0.5KvAC | ||||||||
| Working Temperature And Humidity | -10°c ~ +60°c(Refer to output derating curve), 20%~90%RH | |||||||
| Weight | 0.65Kgs | |||||||
