S-350
Description:

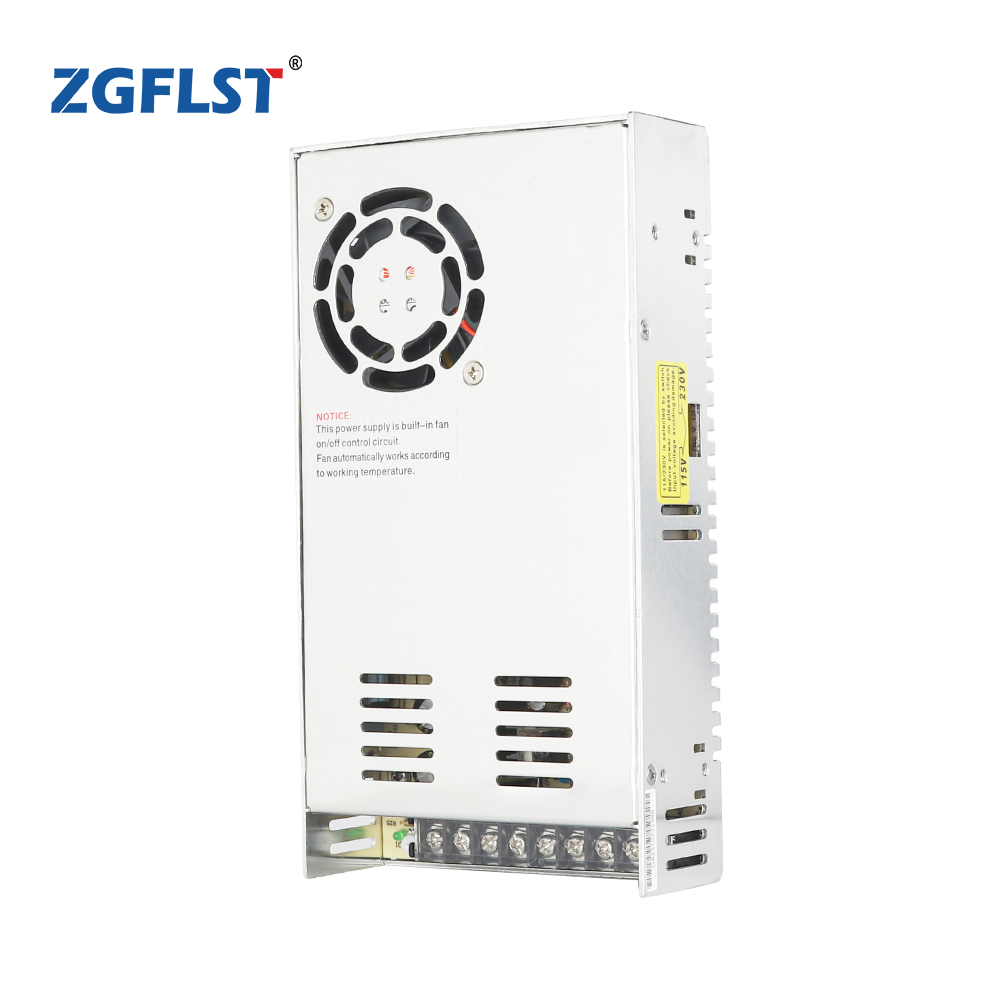

350W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
- Type and Specification
| Model | S-350-5 | S-350-7.5 | S-350-12 | S-350-13.5 | S-350-15 | S-350-24 | S-350-27 | S-350-48 | |
| Output | DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Voltage Tolerance | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 50A | 40A | 29A | 25.8A | 23.3A | 14.6A | 13A | 7.3A | |
| Currentrange | 0-50A | 0-40A | 0-29A | 0-25.8A | 0-23.2A | 0-14.6A | 0-13A | 0-7.3A | |
| Rated Power | 250W | 300W | 348W | 348.5W | 348W | 350.4W | 351W | 350.4W | |
| Ripple & Noise (MAX) | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| Voltagefre Quency Range | 0.05 | ||||||||
| Setup, Rise, Hold Time | 200ms, 50ms, 20ms | ||||||||
| Input | Voltage Range | 90132 VAC/180264VACselected by switch 4763 Hz254370VDC | |||||||
| AC Current | Cold start 6.5A/115 V 4A/ 230 V | ||||||||
| Efficiency | 74% | 76% | 76% | 79% | 78% | 82% | 82% | 83% | |
| Inrush Current | 25A/115V50A/230V | ||||||||
| Leakage Current | 3.5 mA/240VAC | ||||||||
| Protection | Over-load Protection | 105%135% Shut down O/P voltage, re-power on to recover | |||||||
| Over Voltage Protection | 5.75-6.7 | 9.4-10.9 | 13.8-16.2 | 15.5-18 | 18-21 | 27.6-32 | 33.7-39 | 56.7-67.2 | |
| High-Temperature Protection | … | ||||||||
| Environment | Working Temp & Humidity | -10°C ~ +50°C; 20%~90%RH | |||||||
| Storage Temp & Humidity | -20°C ~ +85°C; 10%~95%RH | ||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG500VDC/100MΩ | ||||||||
| EMC Standards | Design refer to EN55022, EN55024, EN61000 | ||||||||
| Others | Weight | 1.15Kg | |||||||
| Packing | 20pcs/ 13.8Kg / 0.98CUFT | ||||||||
