S-400
Description:

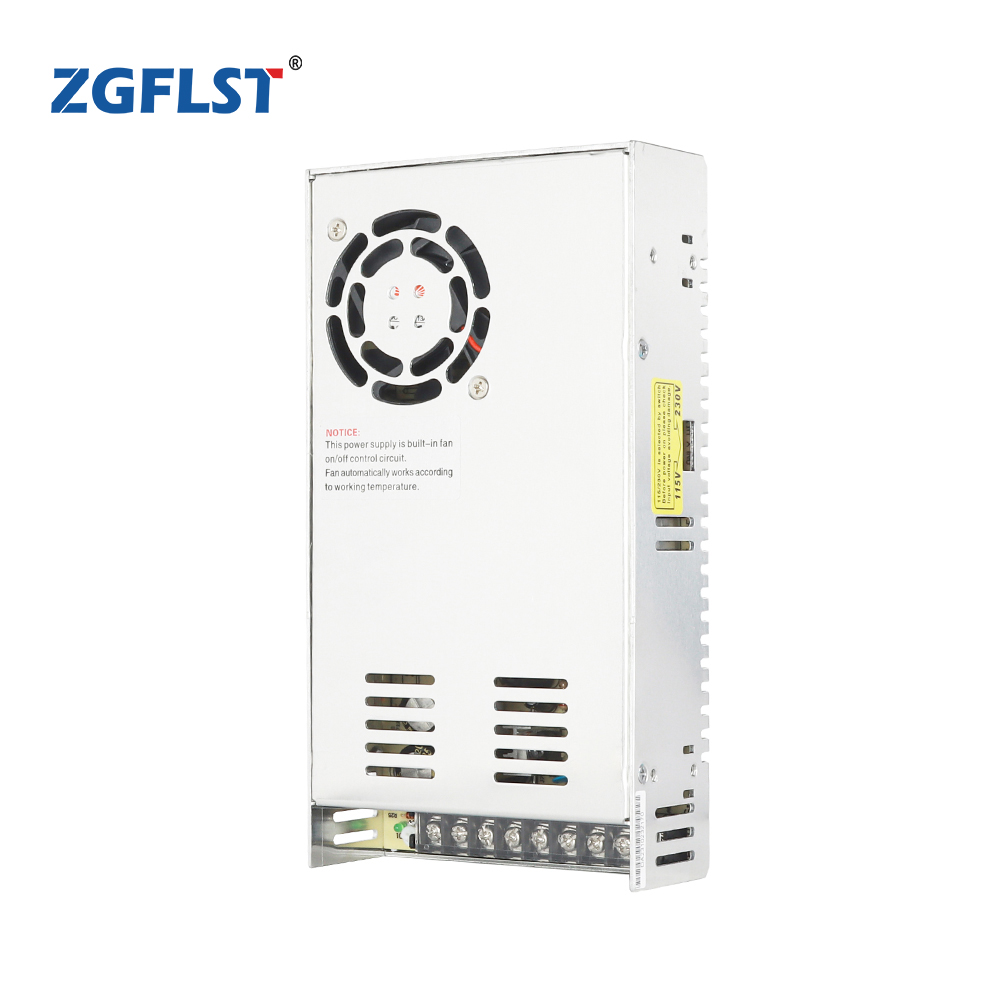

400W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.
Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model | S-400W-5V | S-400W-12V | S-400W-15V | S-400W-24 | S-400W-48 |
| DC Output Voltage | 5V | 12 V | 15 V | 24V | 48V |
| DC Output Current | 60A | 33A | 27A | 16.5A | 8.3A |
| DC Output Voltage Error | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple & Noise | 150mV | 150mV | 150mV | 150mV | 150mV |
| Efficiency | 73% | 74% | 78% | 81% | 83% |
| AC Input Voltage Range | 85-132VAC/170-264vac 47-63HZ 240-370VDC | ||||
| Input Current | 6.5A/115V 4A/230V | ||||
| AC Inrush Current | Cola-start current 25A/115V 50A/230V | ||||
| Leakage Current | <3.5mA/240VAC | ||||
| DC Adjustable Range | ±10% rated output voltage | ||||
| Over Load Protection | 105-135% cut off the output auto-recovery | ||||
| Over-Voltage Protection | 115-135 cut off the output auto-recovery | ||||
| Setup Rise Hold-Up Time | 200ms 50ms 20ms | ||||
| Withstand Voltage | I/P-O/P: 1.5KVAC 1minute | ||||
| I/P-FG: 1.5KVAC 1minute | |||||
| O/P-O/P: 0.5KVAC 1minute | |||||
| Withstand Temperature | -10°C ~ +60°C, 20%-90% RH | ||||
| Weight | 1.05kg | ||||
