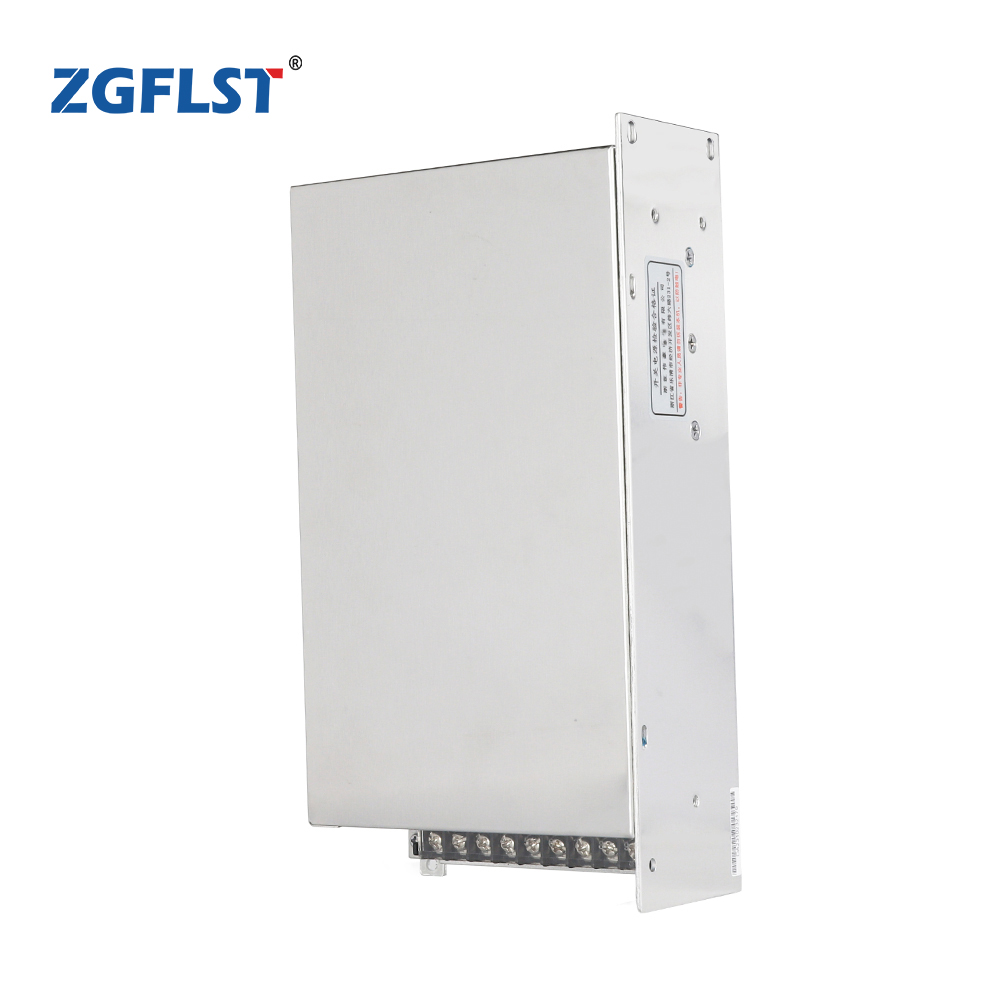

S-600
Description:
600W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosen by switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
- Type and Specification
| MODEL | S-600-12 | S-600-13.5 | S-600-15 | S-600-24 | S-600-27 | S-600-48 | |
| OUTPUT | DC VOLTAGE | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 50A | 44A | 40A | 25A | 22A | 12.5A | |
| CURRENT RANGE | 0 ~ 50A | 0 ~ 44A | 0 ~ 40A | 0 ~ 25A | 0 ~ 22A | 0 ~ 12.5A | |
| RATED POWER | 600W | 600W | 600W | 600W | 594W | 600W | |
| RIPPLE & NOISE (max.) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | 10 ~ 13.2V | 12 ~ 15V | 13.5 ~ 18V | 20 ~ 26.4V | 26 ~ 32V | 41 ~ 56V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE, HOLD TIME | 200ms, 50ms, 20ms at full load | ||||||
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC (110VAC input can be custom-made) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 84% | 84% | 84% | 86.00% | 87.00% | 88% | |
| AC CURRENT | 7A/115V 3.5A/230V | ||||||
| INRUSH CURRENT (max.) | 18A/115V 36A/230V | ||||||
| LEAKAGE CURRENT | |||||||
| PROTECTION | OVERLOAD | 105 ~ 135% of rate load | |||||
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 18 ~ 21V | 27.6 ~ 32.4V | 31 ~ 36.5V | 57.6 ~ 67.2V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | |||||||
| FAN CONTROL,O.T.P. | RTH1 or RTH250ºC FAN ON, 45ºC FAN, 70ºC output shut down | ||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60ºC, 20 ~ 90% RH non-condensing | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UL1950, TUV EN60950-1 | |||||
| WITHSTAND VOLTAGE | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2, -3 | ||||||
| EMS IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, Light industry level, criteria A | ||||||
| OTHERS | MTBF | 138.6K hrs min. MIL-HDBK-217F (25ºC) | |||||
| DIMENSION | 240*125*65mm (L*W*H) | ||||||
| PACKING | 1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB | ||||||
