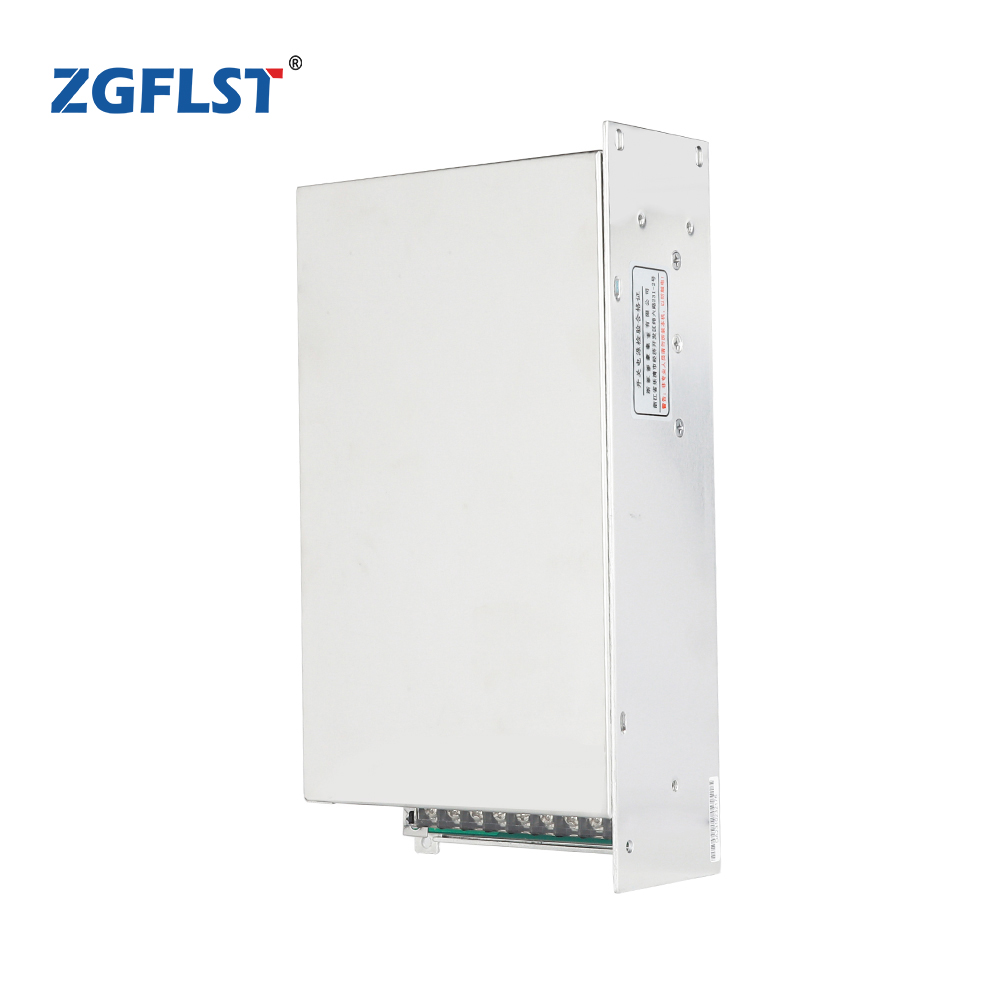

S-500
Description:
Used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.
Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model | S-500-12 | S-500-13.5 | S-500-15 | S-500-24 | S-500-27 | S-500-48 | |
| Output | DC Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Rated Current | 40A | 36A | 32A | 20A | 18A | 10A | |
| Current Range | 0 ~ 40A | 0 ~ 36A | 0 ~ 32A | 0 ~ 20A | 0 ~ 18A | 0 ~ 10A | |
| Rated Power | 480W | 486W | 480W | 480W | 486W | 480W | |
| Ripple & Noise (max.) | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p | |
| Voltage ADJ. Range | 10 ~ 13.2V | 12 ~ 15V | 13.5 ~ 18V | 20 ~ 26.4V | 26 ~ 32V | 41 ~ 56V | |
| Voltage Tolerance | 1.00% | 1.00% | 1.00% | 1.00% | 1.00% | 1.00% | |
| Line Regulation | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | |
| Load Regulation | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% | |
| Setup, Rise, Hold Time | 200ms, 50ms, 20ms at full load | ||||||
| Input | Voltage Range | 180 ~ 264VAC (110VAC input can be custom-made) | |||||
| Frequency Range | 47 ~ 63Hz | ||||||
| Efficiency (Typ.) | 84% | 84% | 84% | 86.00% | 87.00% | 88% | |
| AC Current | 7A/115V 3.5A/230V | ||||||
| Inrush Current (max.) | 18A/115V 36A/230V | ||||||
| Leakage Current | |||||||
| Protection | Overload | 105% ~ 135% of the rated load | |||||
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||||||
| Over Voltage | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 18 ~ 21V | 27.6 ~ 32.4V | 31 ~ 36.5V | 57.6 ~ 67.2V | |
| Protection type: Hiccup mode, which recovers automatically after the fault condition is removed. | |||||||
| Fan Control, O.T.P. | RTH1 or RTH2 | ||||||
| 50ºC FAN ON | |||||||
| 45ºC FAN | |||||||
| 70ºC output shut down | |||||||
| Environment | Working Temp | -10ºC ~ +60ºC, 20%~90%RH non-condensing | |||||
| Temp Coefficient | 0.03%/ºC (0 ~ 50ºC) | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along the X, Y, and Z axes | ||||||
| Safety & EMC | Safety Standards | Design refer to UL1950, TUV EN60950-1 | |||||
| Withstand Voltage | I/P-O/P: 1.5KVAC | ||||||
| I/P-FG: 1.5KVAC | |||||||
| O/P-FG:0.5KVAC | |||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||
| EMI Conduction & Radiation | Compliance to EN55022 (CISPR22) Class B | ||||||
| Harmonic Current | Compliance to EN61000-3-2,-3 | ||||||
| EMS Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, Light industry level, criteria A | ||||||
| Others | MTBF | 138.6K hrs min. MIL-HDBK-217F (25ºC) | |||||
| Dimension | 240*125*65mm (L*W*H) | ||||||
| Packing | 1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB | ||||||
