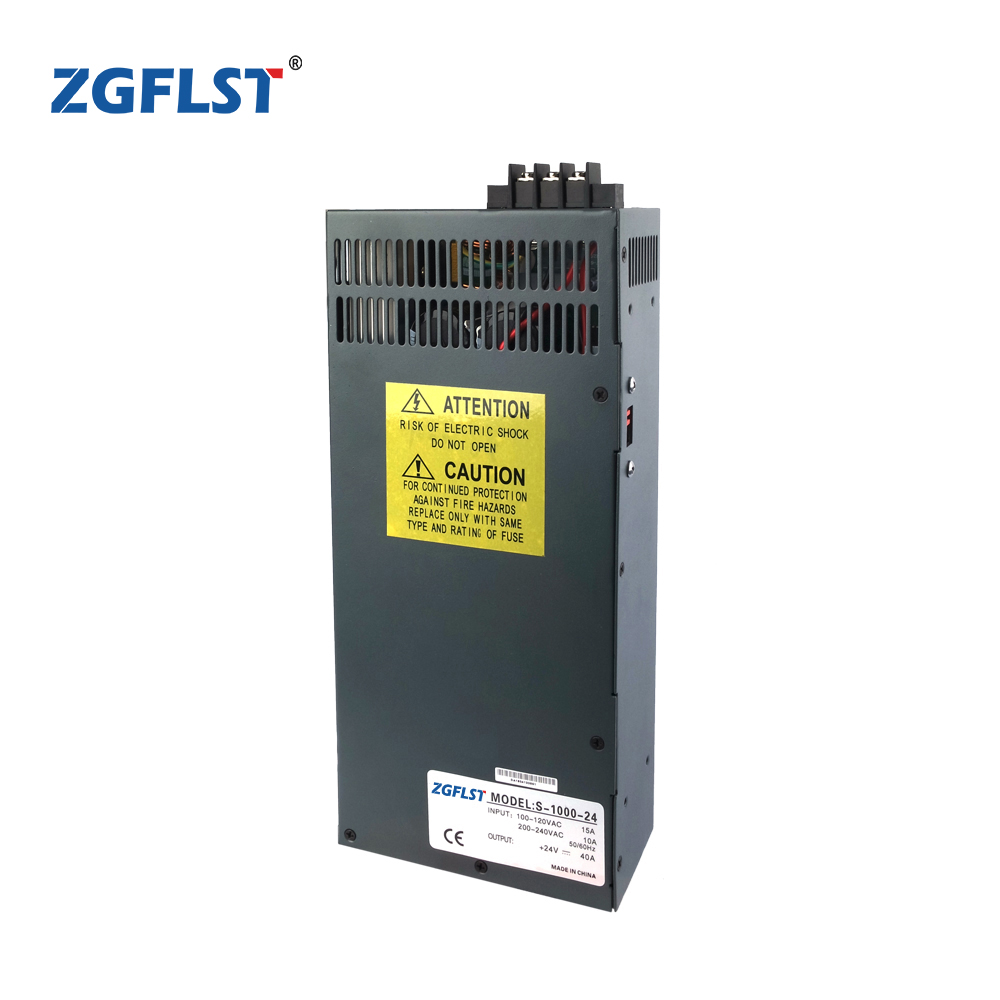

S-1000 1000W single switching power supply
Description:
1000W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
- Type and Specification
| Model | S-1000-12 | S-1000-15 | S-1000-24 | S-1000-48 |
| DC Output Volta | 12V | 15V | 24V | 48V |
| Output Voltage Tolerance (Note 2) | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 80A | 66A | 42A | 20A |
| Output Current Range | 0-80A | 0-66A | 0-42A | 0-10A |
| Ripple And Noise (Note 3) | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p |
| Inlet Stability (Note 4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note 5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 960W | 990W | 1008W | 960W |
| Efficiency | 84% | 83% | 85.50% | 87% |
| DC Voltage Adjustable Range | 10-13.2V | 13.5-18V | 20-26.4V | 41-56V |
| Input Voltage Range | 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz; 254~370VDC | |||
| Input Current | 7A/115V 3.5A/230V | |||
| Surge Current | 0.95/100~240VAC | |||
| Leakage Current | 18A/115V 36A/230V | |||
| Overload Protection | <3.5mA/240VAC | |||
| High-Temperature Protection | 13.8~16.2V | 18~21V | 27.6~32.4V | 57.6~67.2V |
| Temperature Coefficient | RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output | |||
| Start-Up, Upper, Retention Time | ±0.03%°C(0~50°C) | |||
| Shock Resistance | 1.5s,50ms,20ms | |||
| Humidity | ||||
| Storage Temperature, Temperature | -10°C~+50°C, 20%~90%RH | |||
| Outline Dimension | -20°C~+85°C, 10%~95%%RH | |||
| Weight | 291*132*68mm | |||
| Safety Standards | 2.65Kgs | |||
| EMC Standard | CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2 | |||
