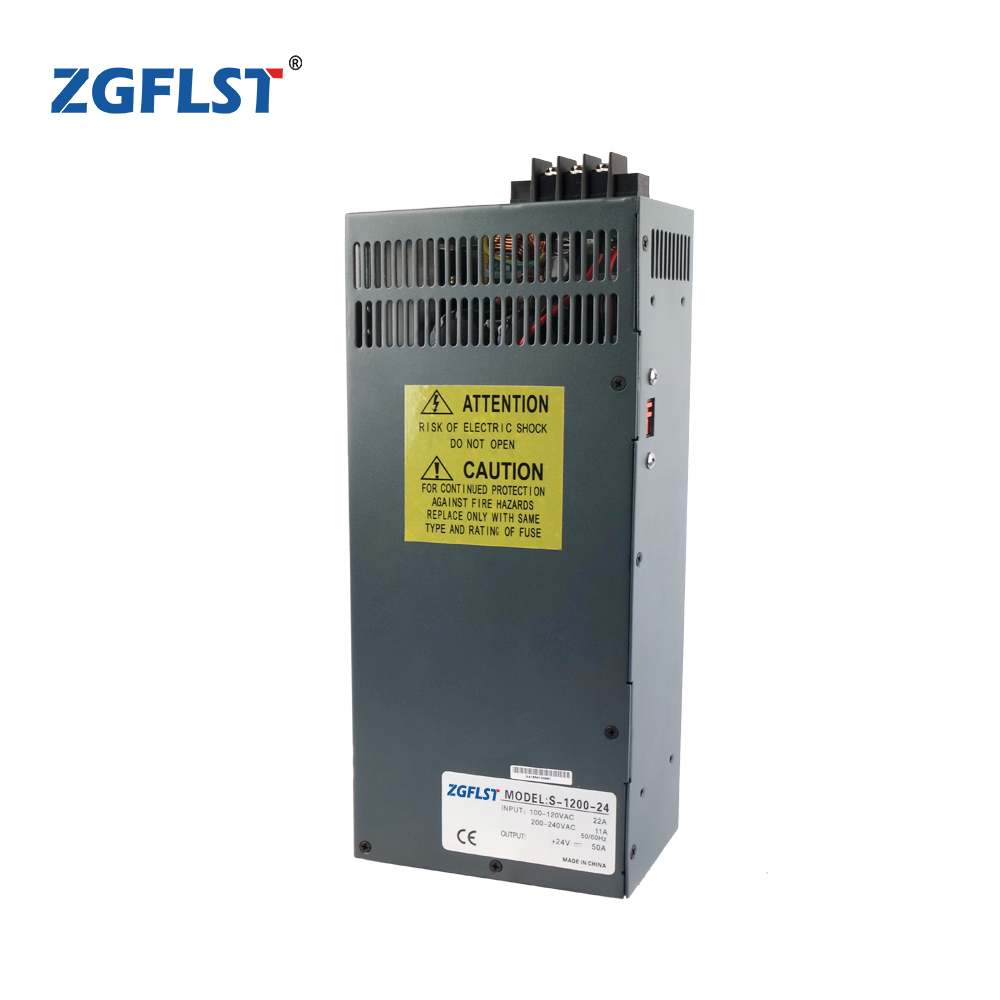

S-1200
Description:
1200W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
- Type and Specification
| Model | S-1200-12 | S-1200-15 | S-1200-24 | S-1200-36 | S-1200-48 | |
| Output | DC Output Voltage | 12V | 15V | 24V | 36V | 48V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated Output Current | 100A | 80A | 50A | 33A | 24A | |
| Output Current Range | 0-100A | 0-80A | 0-50A | 0-33A | 0-24A | |
| Output Power | 1200W | 1200W | 1200W | 1200W | 1200W | |
| Ripple And The Noise | 120mVp-p | 150mVp-p | 240mVp-p | 240mVp-p | 480mVp-p | |
| Dc Voltage Adjustable Scope | +5%; By external 2~5V voltage control, which can adjust the output voltage of the rated voltage the in the range of 40% ~ 100% in value | |||||
| Start, Rise, Keep Time | 800ms, 50ms, 16ms Loaded with | |||||
| Input | Input Voltage Range | 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63 Hz; 290~370VDC | ||||
| Exchange Input Current | 11A/ 230 VAC | |||||
| Efficiency | 77% | 83% | 85% | 85% | 87% | |
| Impulse Current | 120A/230V | |||||
| Leakage Current | 3.5 mA/240VAC | |||||
| Protection Characteristics | Overload Protection | 101%~115% | 110%~135% | |||
| Protection way: current limiting, delay shut off, restart | ||||||
| High-Temperature Protection | TSW1 (power tube) temperature > 100℃, restart when cut off output | |||||
| Environment | Working Temperature, Humidity | -10℃ ~ +65℃, 20%~90%RH | ||||
| Keep Temperature, | -20℃ ~ +85℃, 10%~95%RH | |||||
| Humidity | ||||||
| Vibrate Resistance | 10 ~ 200 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis | |||||
| Security | Compression Sex | I/P-O/P, I/P-FG: 1500VAC | ||||
| Insulation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | |||||
| EMC Standard | Accord with | |||||
| FCC Part 15 Class A | ||||||
| Other | Weight | 2.65Kg; | ||||
| Packaging | 6pcs/16kg/CARTO | |||||
