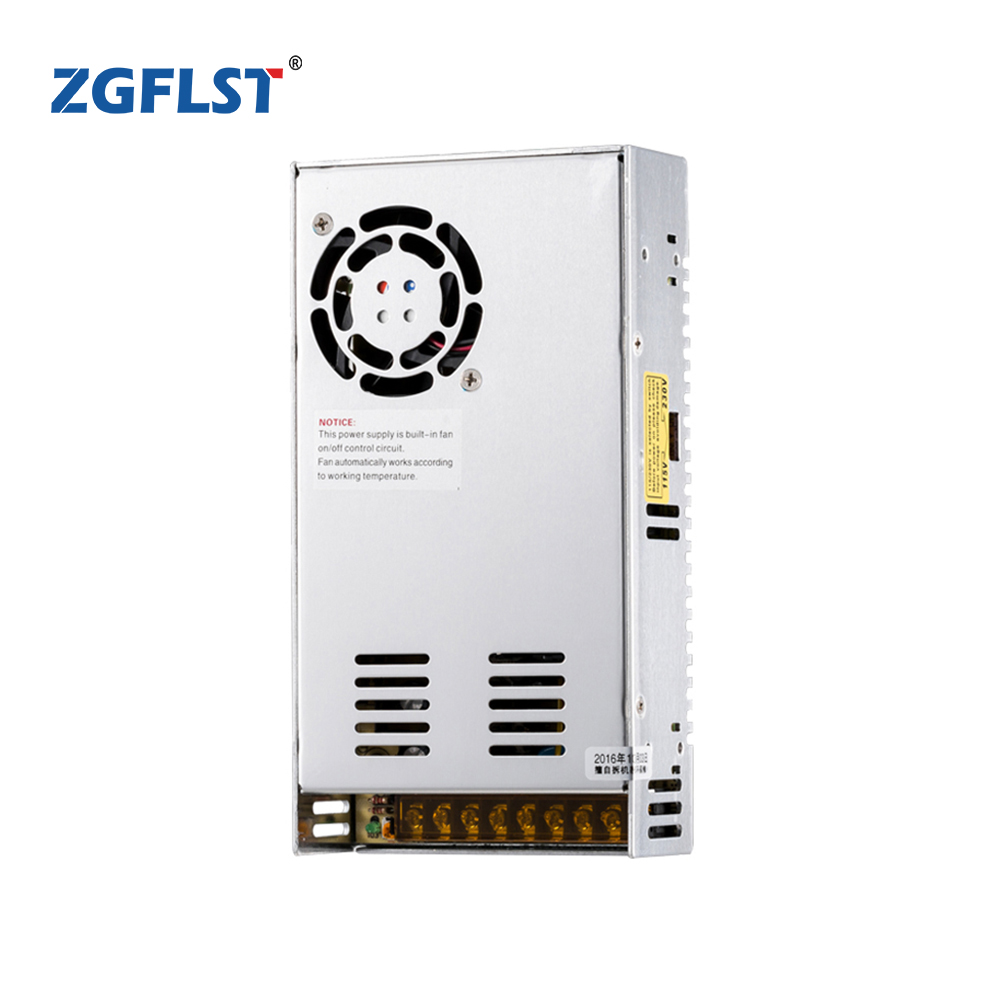

LRS-600
Description:
LRS-600 Ac to Dc Constant Voltage Switching Power Supply High Efficiency Smps Power Supply
The LRS-600 series is a very popular style. It is the highest power product in our LRS series so far.
88%High work efficiency,12V 24V 36V 48V And customization 27V 45V Other Power.
Delivering an extremely low no-load power consumption(less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.
LRS-600 With extremely high cost performance to solve your industrial problems.
- Type and Specification
| Specification/Model | LRS-600-12 | LRS-600-24 | LRS-600-36 | LRS-600-48 |
| DCoutput voltage,current | 12V 0～40A | 24V 0～25A | 36V 0～16.7A | 48V 0～12.5A |
| Wave and noise | 150mVp-p | 180mVp-P | 240mVp-P | 240mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | 士0 .5% | 士0.5% |
| Efficiency | 82% | 86% | 87% | 88% |
| Adjustable range forDC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 95～132V/180～264V254～370V47～63Hz | |||
| 95～132VAC/180～264VACby switch 254～370VDC 47～63Hz | ||||
| Impact current | Cold start current 35A/115VAC 65A/230VAC | |||
| Overload protection | 110%～135%cut off the output,Protection type:Hiccup mode,recovers automatically after fault condition is removed | |||
| Over voltage protection | 115%~135%rated output power Protection type:Hiccup mode,recovers automatically after fault condition is removed | |||
| Setup,rise,hold uptime | 1500ms,30ms/230VAC 2000ms,50ms/115VAC | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MOhms/500VDC/25℃/70%RH | |||
| Working temperature | 10C～+50C | |||
| Dimension | 215X115X50mm | |||
| Weight | lkg | |||
| Packing | 45.5×31.5×26CM/20PCS/20kg | |||
