MS-15 15W Single output minisize power supply switching power supply
Description:

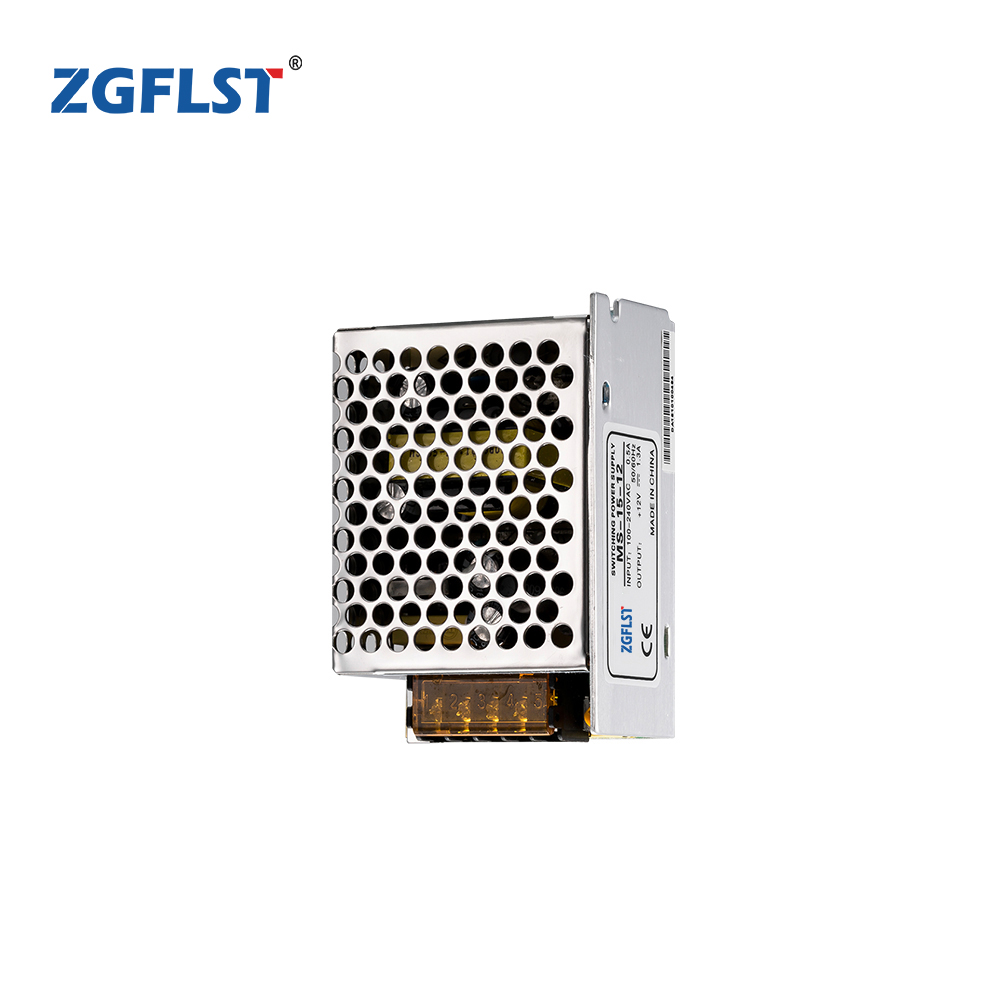

MS-15 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-15-5 | MS-15-12 | MS-15-24 | |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 3A | 1.3A | 0.7A | |
| Output Current Range | 0-3A | 0-1.3A | 0-0.7A | |
| Output Power | 15W | 15.6W | 16.8W | |
| Ripple And The Noise | 80mVp-p | 120mVp-p | 150mVp-p | |
| Dc Voltage Adjustable Scope | +10, -5% | ±10% | ±10% | |
| Start, Rise, Keep Time | 200ms,50ms,20ms/230VAC | |||
| Input | Input Voltage Range | 170～264VAC 47～63Hz, 235～373VDC | ||
| Exchange Input Current | 0.25A/230VAC | |||
| Efficiency | 68% | 71% | 75% | |
| Impulse Current | Cold Start Current | |||
| 30A/230VAC | ||||
| Leakage Current | ＜0.5mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: fold layer type load current limiting, abnormal conditions can be removed the recovery | ||
| Environment | Working Temperature, Humidity | -10℃～+60℃; 20%～90%RH (Please refer to reduce the specified number load curve) | ||
| Keep Temperature, Humidity | -20℃～+85℃;10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Between the input and output, the output and input: with the ground | ||
| 100M Ohms/500VDC | ||||
| Insulation Resistance | Between the input and output, the output and input: with the ground | |||
| 100M Ohms/500VDC | ||||
| Standard | Safety Standards | Meet the UL1012 requirements | ||
| EMC Standard | Meet the FCC PART15J equipment conditions B | |||
| Other | Weight | 0.15kg 84*58*38 (L*W*H） | ||
| Packaging | 0.15kg/80pcs/13kg | |||
| Note | 1. All parameters are measured with 230V voltage input, AC-rated load, and 25°C temperature. | |||
| 2. The voltage of the ripple and noise are calculated at 20MHz bandwidth with 1 to 2-inch oscilloscope pairs and 0.1 μ and 4 7 μons capacitors. | ||||
| 3. Tolerance encompasses voltage setting error, voltage regulation rate, and current regulation rate. | ||||
