MS-25 25W Single output minisize power supply switching power supply
Description:

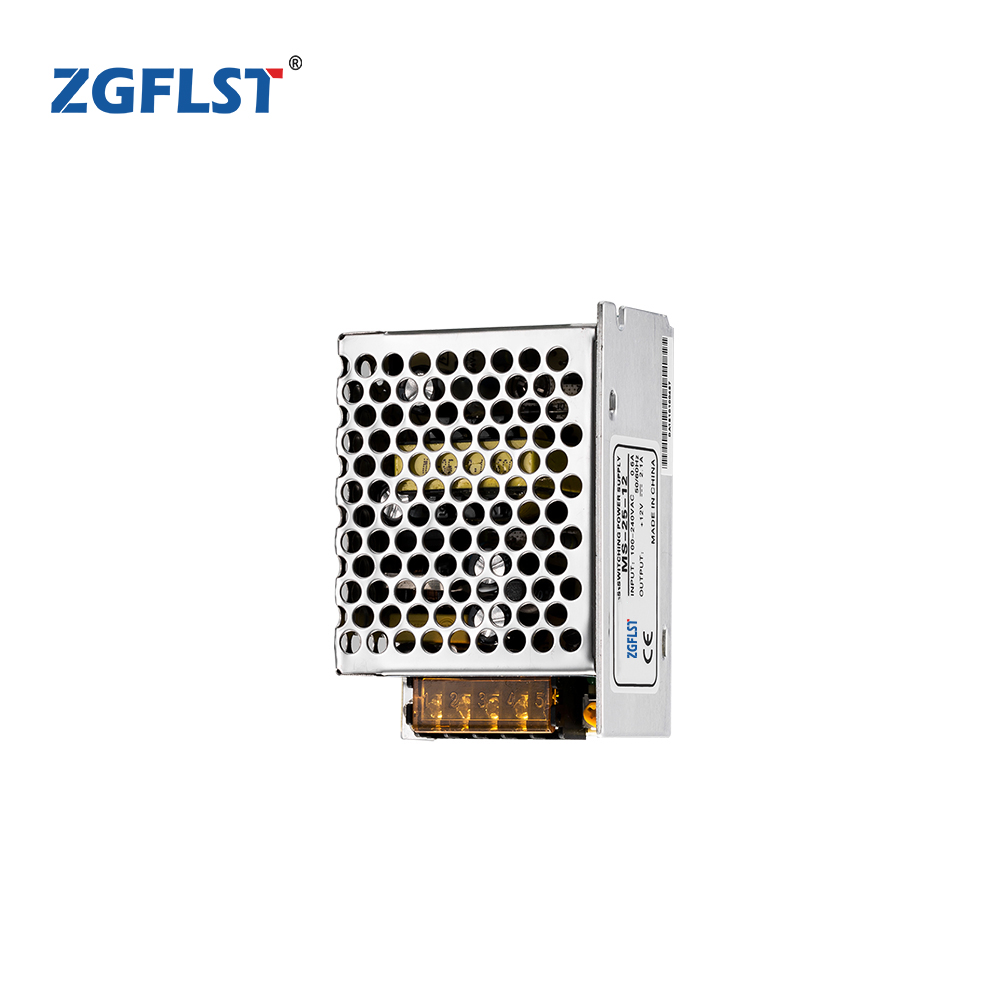

MS-25 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-25-12 | MS-25-15 | MS-25-24 | |
| Output | DC Output Voltage | 12V | 15V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 5A | 1.4A | 1.1A | |
| Output Current Range | 0-5A | 0-1.4A | 0-1.1A | |
| Output Power | 24W | 24W | 24W | |
| Ripple And The Noise | 100mVp-p | 120mVp-p | 150mVp-p | |
| Dc Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
| Start, Rise, Keep Time | 200ms, 50ms, 20ms/230VAC | |||
| Input | Input Voltage Range | 170～264VAC 47～63Hz, 235～373VDC | ||
| Exchange Input Current | 0.35A/230VAC | |||
| Efficiency | 70% | 76% | 78% | |
| Impulse Current | Cold start current 30A/230VAC | |||
| Leakage Current | ＜0.5mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: fold layer type load current limiting, abnormal conditions can be removed the recovery | ||
| Environment | Working Temperature, Humidity | -10℃～+60℃; 20%～90%RH (Please refer to reduce the specified number load curve) | ||
| Keep Temperature, Humidity | -20℃～+85℃; 10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz, 2G 10min./1Cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
| Insulation Resistance | Between the input and output, the output and input: with the ground: 100 M / 500 VDC Ohms | |||
| Complies With The Standards | Safety Standards | Meet the UL1012 requirements | ||
| EMC Standard | Meet FCC PART15J conditions CLASS B | |||
| Other | Weight | 0.15kg 84*58*38（L*W*H） | ||
| Packaging | 0.15kg/80pcs/13kg/0.9CUFT | |||
| Note | 1. All the parameters have not been specified, all are in 230V voltage input, AC-rated load, and 25℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage are in 20MHz bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0.1mu and 47 muons capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate, and adjusting the sum total of the current rate. | ||||
