MS-50
Description:

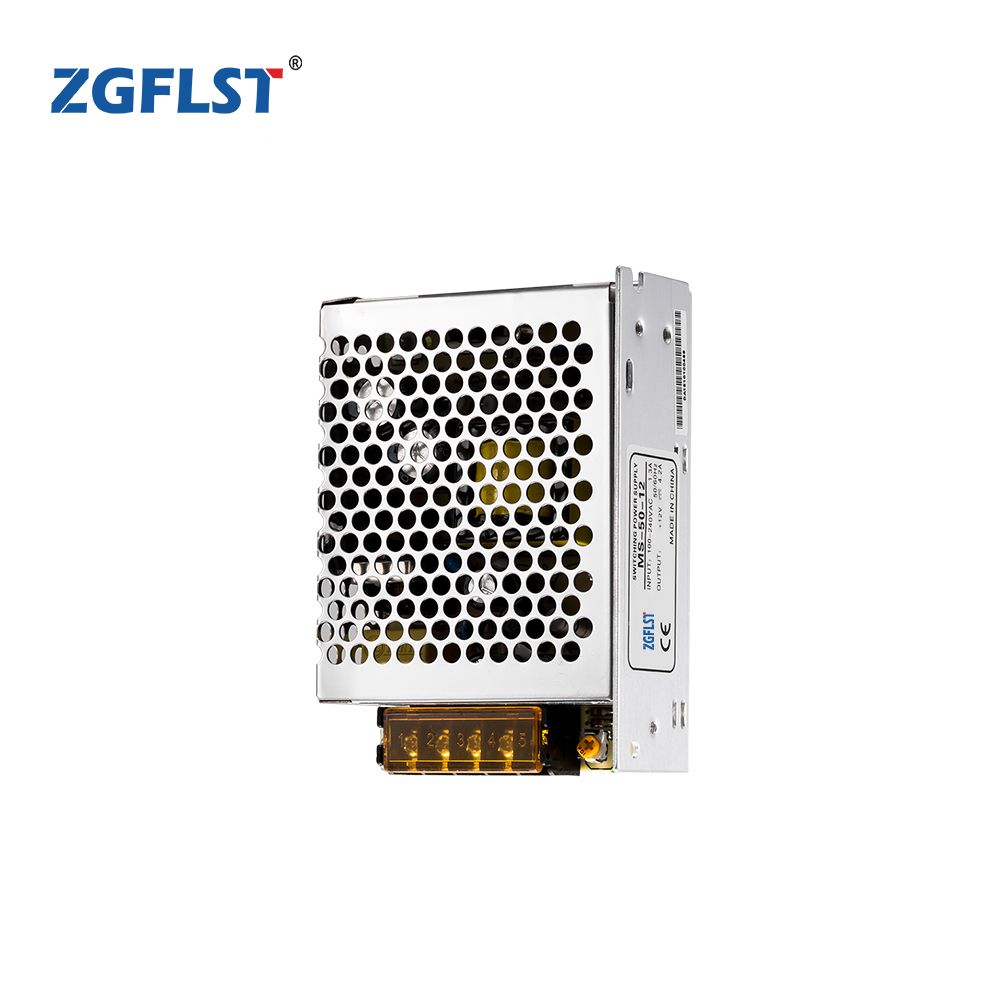

MS-50 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-50-5 | MS-50-12 | MS-50-24 | |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 10A | 4.2A | 2.1A | |
| Output Current Range | 0～10A | 0～4.2A | 0～2.1A | |
| Output Power | 50W | 50W | 50W | |
| Ripple And The Noise | 80mVp-p | 120mVp-p | 120mVp-p | |
| DC Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
| Start, Rise, Keep Time | 800ms, 20ms, 24ms/230VAC. | |||
| Input | Input Voltage Range | 170～264VAC 47～63Hz，235～373VDC | ||
| Exchange Input Current | 0.65A/230VAC | |||
| Efficiency | 80% | 82% | 84% | |
| Impulse Current | Cold start current 30A/230VAC | |||
| Leakage Current | ＜1mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
| Environment | Working Temperature, Humidity | Accord with EN55022，CLASSA | ||
| Keep Temperature, Humidity | -20℃～+85℃; 10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz, 2G 10min./1 cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5: 0.5KVAC | ||
| Insulation Resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
| Complies With The Standards | Safety Standards | Meet the UL1012 requirements | ||
| EMC Standard | Accord with EN55022，CLASSA | |||
| Other | Weight | 0.26kg 111*78*36（L*W*H） | ||
| Packaging | 0.26kg/50pcs/14kg/0.9CUFT | |||
| Note | ||||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||
