MS-60 60W Single output minisize power supply switching power supply
Description:

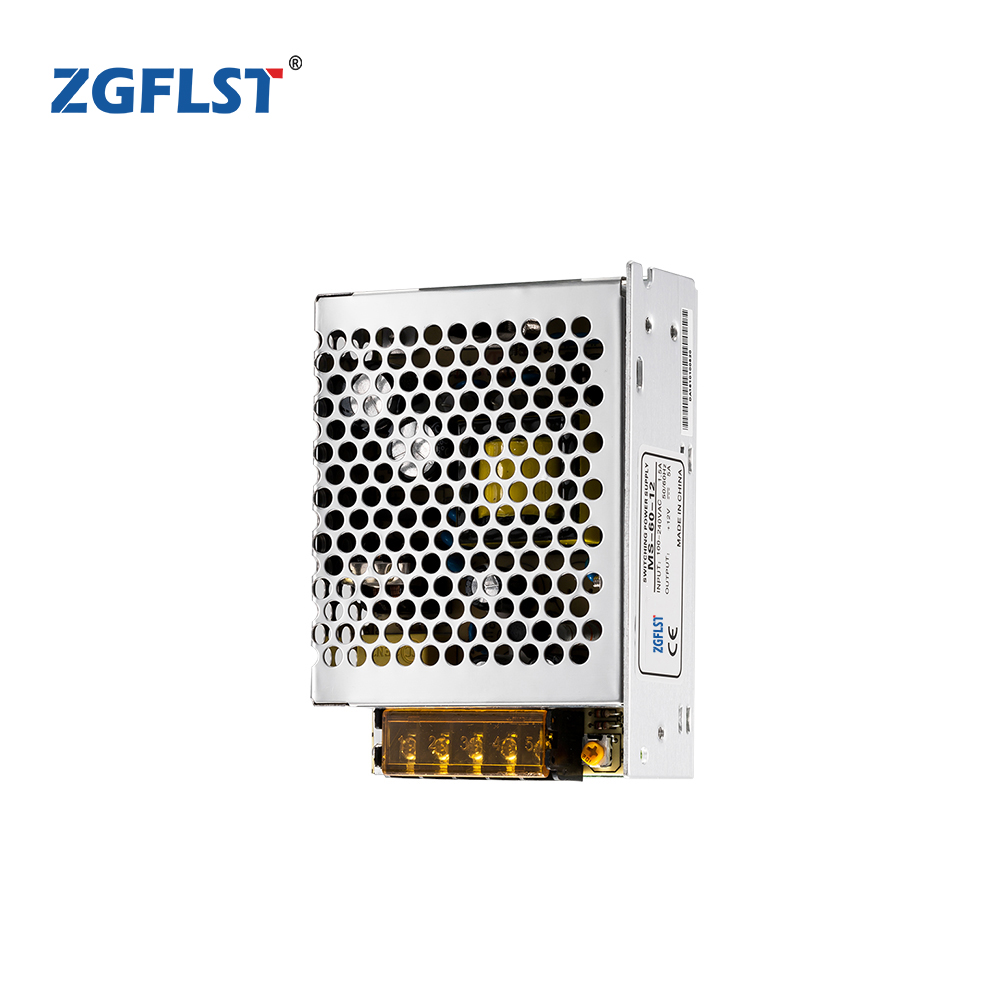

MS-60 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-60-12 | MS-60-15 | MS-60-24 | |
| Output | DC Output Voltage | 12V | 15V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 5A | 4A | 2.5A | |
| Output Current Range | 0～5A | 0～4A | 0～2.5A | |
| Output Power | 60W | 60W | 60W | |
| Ripple And The Noise | 100mVp-p | 120mVp-p | 120mVp-p | |
| Dc Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
| Start, Rise, Keep Time | 600ms, 30ms, 20ms/230VAC | |||
| Input | Input Voltage Range | 170～264VAC 47～63Hz, 235～373VDC | ||
| Exchange Input Current | 0.8A/230VAC | |||
| Efficiency | 82% | 82% | 84% | |
| Impulse Current | Cold start current 30A/230VAC | |||
| Leakage Current | ＜1mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
| Environment | Working Temperature, humidity | -10℃～+60℃; 20%～90%RH(Please refer to reduce the specified number load curve ) | ||
| Keep Temperature, Humidity | -20℃～+85℃; 10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz, 2G 10min./ 1 cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
| Insulation Resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
| Standards | Safety Standards | Accord with UL1012 | ||
| EMC Standard | Accord with EN55022, CLASSA | |||
| Other | Weight | 0.27kg 111*78*36（L*W*H） | ||
| Packaging | 0.27kg/50pcs/14.5kg/0.9CUFT | |||
| Note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||
