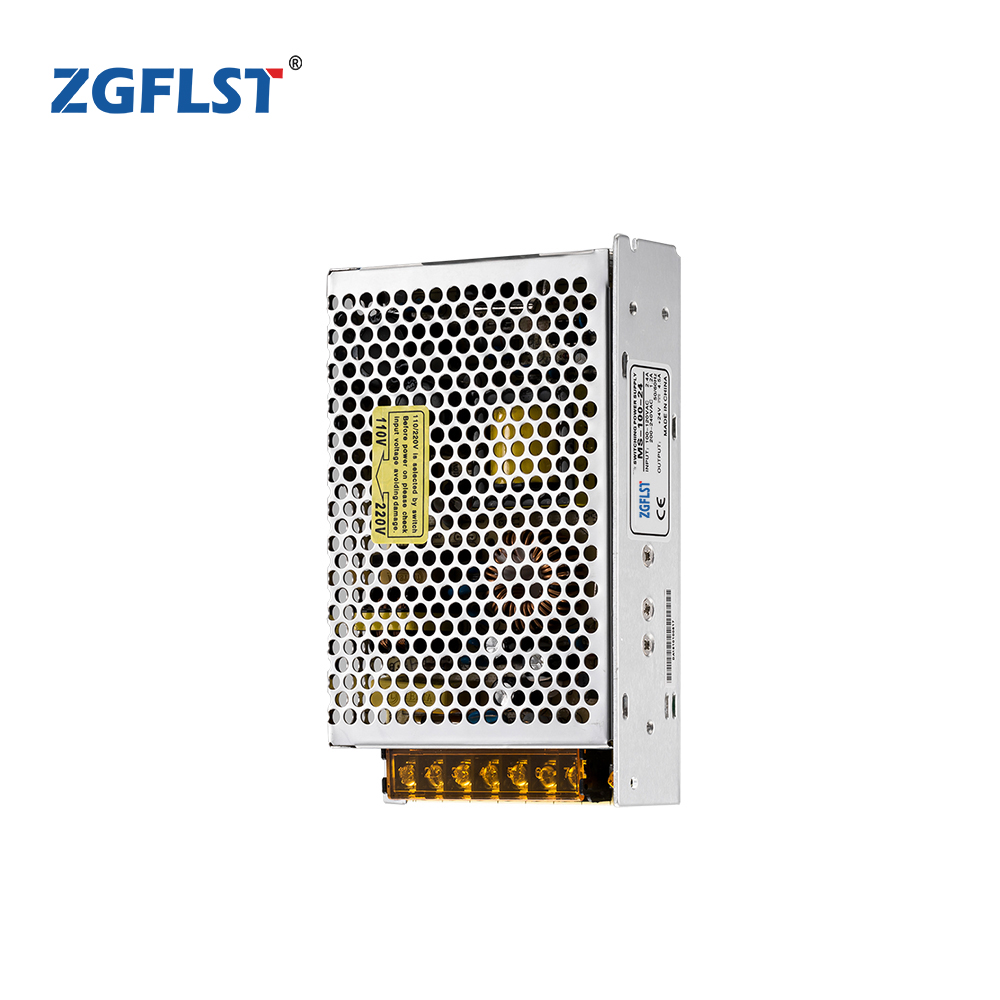

MS-100
Description:
MS-100 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-100-5 | MS-100-12 | MS-100-24 | |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 20A | 8.5A | 4.5A | |
| Output Current Range | 0-20A | 0-8.5A | 0-4.5A | |
| Output Power | 100W | 100W | 101W | |
| Ripple And the Noise | 100mVp-p | 120mVp-p | 150mVp-p | |
| DC Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
| Start, Rise, Keep Time | 500ms,20ms,24ms/230VAC.800ms,30ms,20ms/115VAC | |||
| Input | Input Voltage Range | 90～132VAC/180～264VAC 47～63Hz(The switch choice)，254～373VDC | ||
| Exchange Input Current | 2.4A/115VAC 1.2A/230VAC | |||
| Efficiency | 80% | 83% | 86% | |
| Impulse Current | Cold start current 30A/230VAC | |||
| Leakage Current | ＜3.5mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
| Environment | Working Temperature, Humidity | -10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve) | ||
| Keep Temperature, Humidity | -20℃～+85℃;10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
| Insulation Resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
| Complies With The Standards | Safety Standards | Accord with UL1012 | ||
| EMC Standard | Accord with EN55022，CLASSA | |||
| Standards | Weight | 0.55kg 159*98*38（L*W*H） | ||
| Packaging | 0.55kg/50pcs/14.5kg/0.9CUFT | |||
| Note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting | ||||
