MS-75
Description:

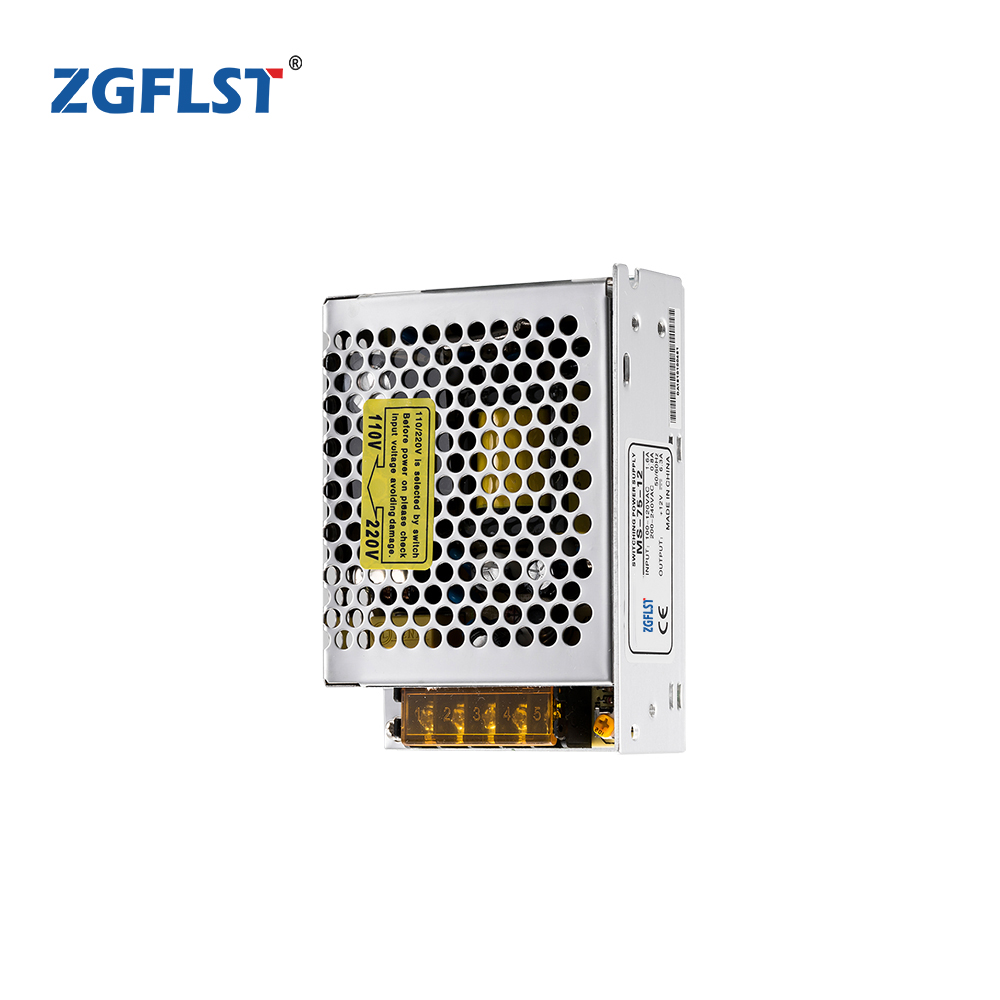

MS-75 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MS-75-5 | MS-75-12 | MS-75-15 | MS-75-24 |
| Specification | ||||
| DC Output Voltage | 5V | 12V | 15V | 24V |
| Output Voltage Range(Note:2) | ±2% | ±1% | ±1% | ±1% |
| Rated Output Current | 15A | 6A | 5A | 3A |
| Output Current Range | 0~15A | 0~6A | 0~5A | 0~3A |
| Wave And Noise(Note:3) | 100mVp-p | 75mVp-p | 75mVp-p | 75mVp-p |
| Inlet Stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability(Note:5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output power | 75W | 75W | 75W | 75W |
| Efficiency | 73% | 78% | 78% | 82% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC | |||
| Input Current | 2A/115V 1A/230V | |||
| AC Inrush Current | Cold-start current 30A/115V 60A/230V | |||
| Leakage Current | <3.5mA/240VAC | |||
| Overload Protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
| Temperature Coefficient | ±0.03%/°C(0~50°C) | |||
| Setup, Rise, Hold Up Time | 800ms, 50ms, 10ms/150V 300ms, 50ms, 80ms/230v | |||
| Vibration | 10~500Hz, 2G 10min, /1 cycle. Period for 60min, Each axes | |||
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||
| Working Temperature And Humidity | -10°C~+60°C(Refer to output load derating curve), 20%~90%RH | |||
| Store Temperature And Humidity | -20°C~+85°C,10%~95%RH | |||
| Overall Dimension | 111X78X36mm (L*W*H) | |||
| Weight | 0.55kgS | |||
| Safety Standards | UL 1012 TUV EN6050(IEC, ul1950)Approved | |||
| EMC Standards | CISPR22(EN55022), IEC801-2,3,4 IEC555-2Verification | |||
