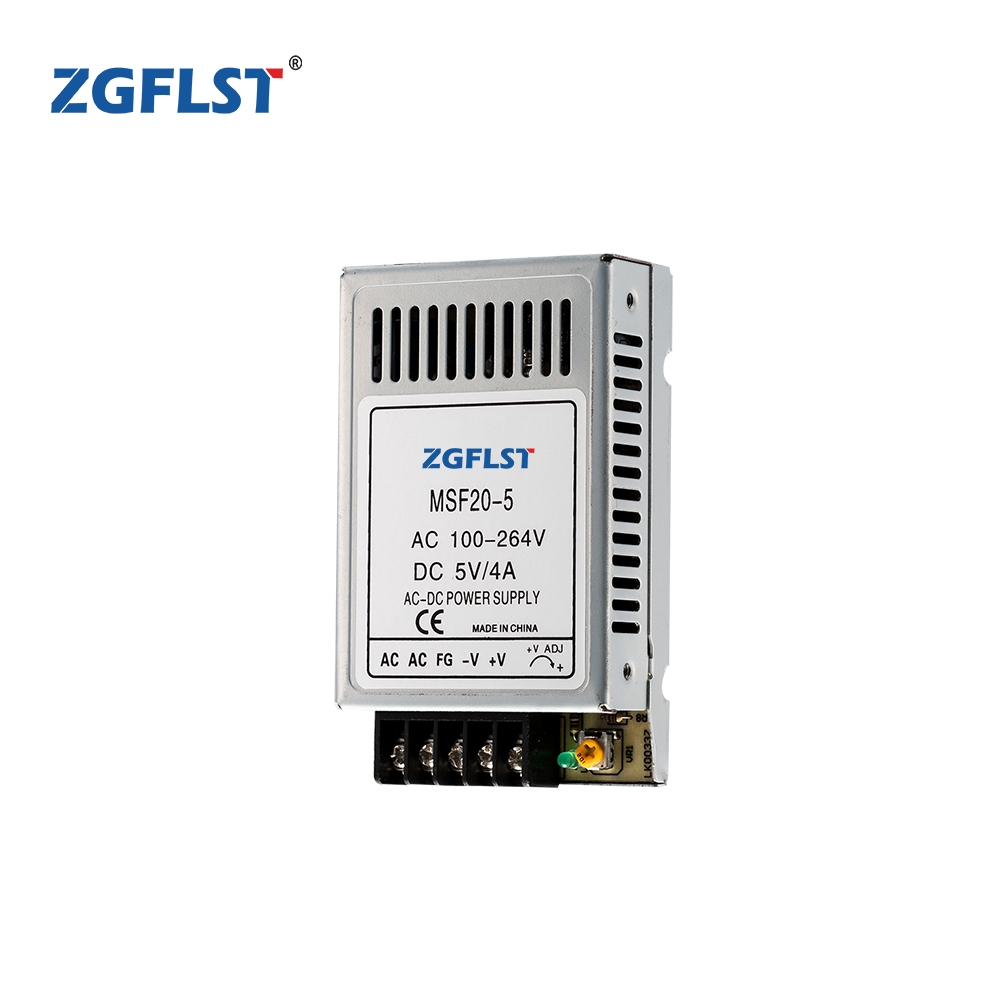

MSF-20
Description:
MSF-20 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
- Type and Specification
| Model | MSF-20-5 | MSF-20-12 | MSF-20-24 |
| DC Voltage | 5V | 12V | 24V |
| Rated Current | 4A | 2A | 1A |
| Current Range | 0 ~ 4A | 0 ~ 2A | 0 ~ 1A |
| Rated Power | 20W | 20W | 20W |
| Ripple & Noise (max.) | 50mVp-p | 50mVp-p | 100mVp-p |
| Voltage ADJ. Range | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 21.6 ~ 26.4V |
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% |
| Setup, Rise, Hold Time | 200ms, 100ms, 30ms at full load | ||
| Voltage Range | 85 ~ 264VAC | ||
| Frequency Range | 47 ~ 63Hz | ||
| Efficiency (Typ.) | 68% | 71% | 75% |
| AC Current | 0.5A/115VAC | ||
| 0.25A/230VAC | |||
| Inrush Current (max.) | Cold Start | ||
| 15A/115VAC | |||
| 30A/230VAC | |||
| Leakage Current | <0.5mA/240VAC | ||
| Over-load | 105 ~ 135% rated output power | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||
| Working Temp | -10 ~ +60ºC (Refer to output load derating curve) | ||
| Working Humidity | 20 ~ 90% RH non-condensing | ||
| Storage Temp Humidity | -20 ~ +85ºC, 10 ~ 95% RH | ||
| Temp Coefficient | ±0.02%/ºC (0 ~ 50ºC) | ||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along the X, Y, and Z axes | ||
| Safety Standards | Design refers to UL1012 | ||
| Withstand Voltage | I/P-O/P: 1.5KVAC | ||
| I/P-FG: 1.5KVAC | |||
| O/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||
| EMI Conduction & Radiation | Design refers to FCC Part15 J Conduction Class B | ||
| MTBF | 522.1K hrs min. MIL-HDBK-217F (25ºC) | ||
| Dimension | 97*58*25mm (L*W*H) | ||
