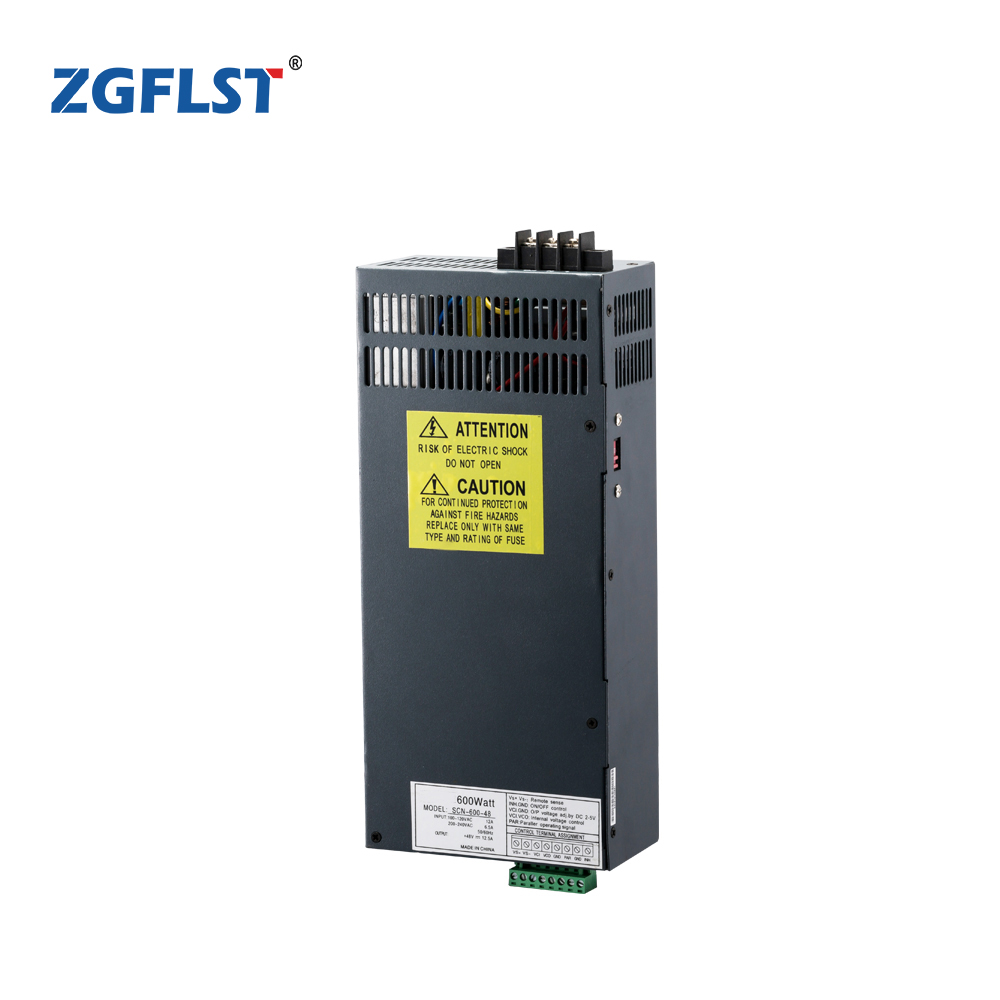

SCN-600
Description:
600W Switching SCN series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity. Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model / Specification | SCN-600-12 | SCN-600-13.5 | SCN-600-15 | SCN-600-24 | SCN-600-27 | SCN-600-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output Voltage Error | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 50A | 44A | 40A | 25A | 22A | 12.5A |
| Output Current Rage | 0-50A | 0-44A | 0-40A | 0-25A | 0-22A | 0-12.5A |
| Wave And Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability(Note5) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 600W | 600W | 600W | 600W | 600W | 600W |
| Efficiency | 83% | 84% | 84% | 85.50% | 86.50% | 87% |
| Adjustable Range For DC Voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| AC Input Voltage Range | 90~132AC/180~264AC | |||||
| AC Input Current | 12A/115V 7.5A/230VAC | |||||
| AC Impulse Current | 25A/115V 50A/230V | |||||
| Leakage Current | <3.5mA/240VAC | |||||
| Overload Protection | 105%~135% Type: PULSING HICCUP SHUTDOWN Reset: auto-recovery | |||||
| Temperature Coefficient | ……….. | |||||
| Temperature Coefficient | ……….. | |||||
| Setup Rise Hold-Up Time | ±0.03%°C(0~50°C) | |||||
| Vibration | 10~500Hz, 2G 10min./1cycle, Period for 60min, EACH AXES | |||||
| Withstand Voltage | Input and output interval: 1.5KvAC,Input and enclosure: 1.5KVAC Output and enclosure: 0.5KVAC | |||||
| Isolation Resistance | Input and output interval, Input and enclosure, Output and enclosure: 500VDC/100M Ohms | |||||
| Working Temperature And Humidity | -10°C ~ +50°C, 20%~90%RH | |||||
| Store Temperature And Humidity | -20°C ~ +85°C, 10%~95%%RH | |||||
| Overall Dimension | 247 x 147 x 63.5mm | |||||
| Weight | 2.1Kgs | |||||
| Safety Standards | Meet UL 1950 requirement (NOT apply for the mark) | |||||
