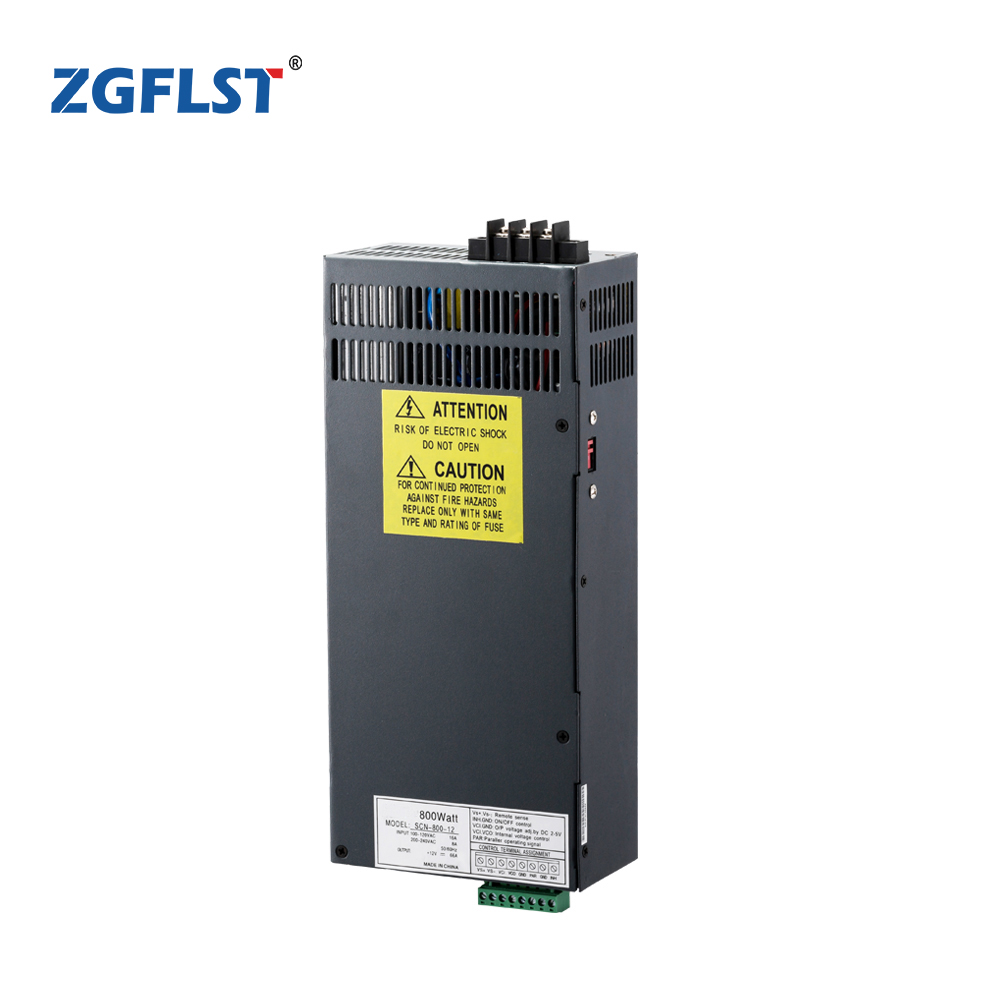

SCN-800
Description:
800W Switching SCN series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity. Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model | SCN-800-12 | SCN-800-15 | SCN-800-24 | SCN-800-48 | |
| Output | DC Voltage | 12V | 15V | 24V | 48V |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 66A | 54A | 33A | 16.6A | |
| Current Range | 0-66A | 0-54A | 0-33A | 0-16.6A | |
| Rated Power | 800W | 800W | 800W | 800W | |
| Ripple & Noise | 150mVp-p | 150mVp-p | 240mVp-p | 480mVp-p | |
| DC Adjustment Range | ±5%; Can adjust from 40%~100% output voltage by external control 2-5V | ||||
| Setup, Rise, Hold Time | 800ms, 50ms, 16ms at full load | ||||
| Input | Voltage Range | 90~130VAC / 180~260 VAC47~63 Hz; selected by switch260~370VDC | |||
| AC Current | 13A/115 VAC 8.0A/ 230 VAC | ||||
| Efficiency | 80% | 81% | 85% | 87% | |
| Inrush Current | 60A/230V | ||||
| Leakage Current | 3.5 mA/240VAC | ||||
| Protection | Over Load | 110%~135% | |||
| Protection: Protection: Current limiting, delay shut down o/p voltage, re-power on to recover | |||||
| Over Voltage | 110%~135% | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over-Temp | TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover | ||||
| Environment | Working Temp. Humidity | -10°C ~ +65°C, 20%~90%RH | |||
| Storage Temp. Humidity | -20°C ~ +85°C, 10%~95%RH | ||||
| Vibration | 10~200Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, and Z axes | ||||
| Safety | Withstand Voltage | I/P-O/P, I/P-FG: 1500VAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
| Standard | Safety Standard | Design refer to UL1950,CSA22.2,IEC60950 | |||
| EMC Standard | Design refers to FCC Part 15 Class A | ||||
| Others | Weight | 2.3Kg; | |||
| Packing | 6pcs/ ctn | ||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25°C of ambient temperature. | ||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | |||||
| 3. Tolerance: includes set up tolerance, line regulation, and load regulation. | |||||
| 4. The power supply is considered a component that will be installed into the final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
