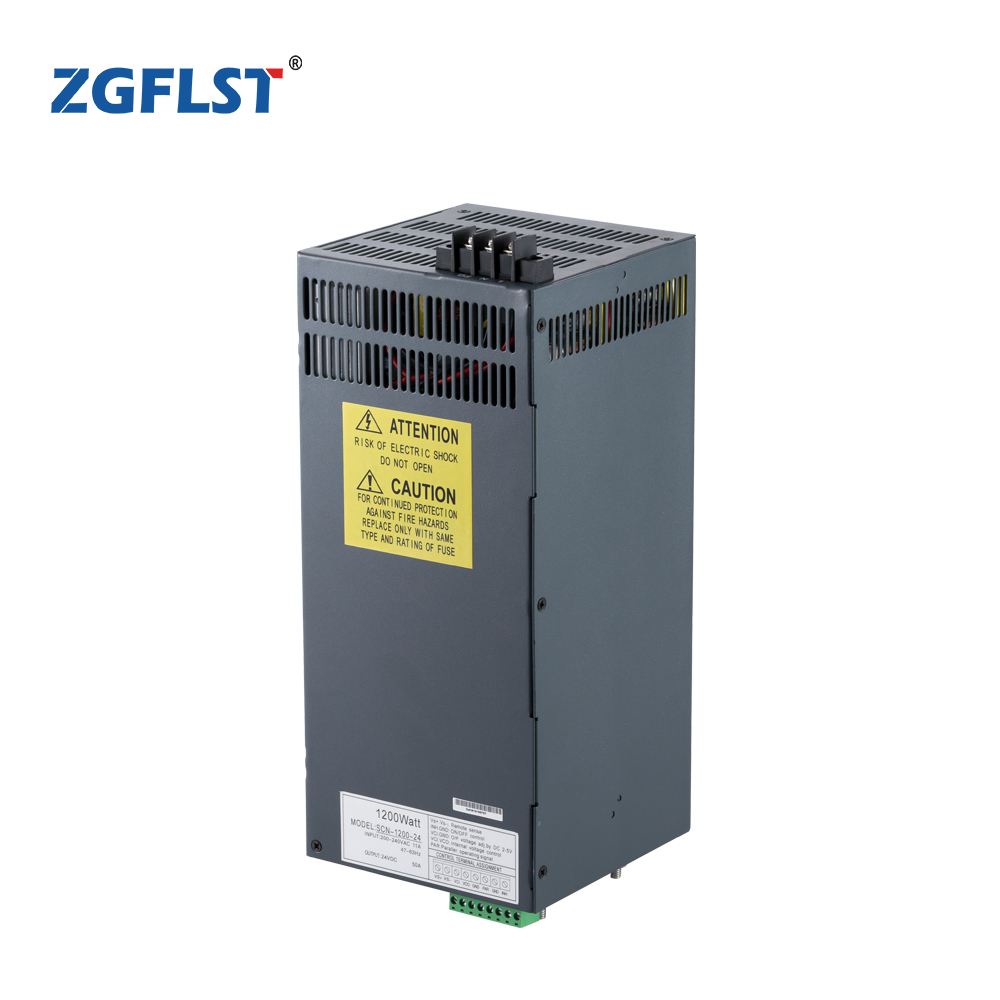

SCN-1200
Description:
1200W Switching SCN Series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
Low cost also makes it more acceptable for general usage.
- Type and Specification
| Model Performance | SCN-1200-12 | SCN-1200-24 | SCN-1200-36 | SCN-1200-48 |
| DC Output Volta | 12V | 24V | 36V | 48V |
| Output Voltage Tolerance(Note 2) | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 100A | 50A | 33.3A | 25A |
| Output Current Range | 0-100A | 0-50A | 0-33.3A | 0-25A |
| Ripple And Noise (Note 3) | 120mVp-p | 200mVp-p | 200mVp-p | 240mVp-p |
| Inlet Stability (Note 4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note 5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 1200W | 1200W | 1200W | 1200W |
| Efficiency | 80% | 85% | 86% | 87% |
| DC Voltage Adjustable Range | ±10% | ±10% | ±10% | ±10% |
| Impact Current | Cold start current 45A/230VAC | |||
| Overload Protection | <3.5mA/240VAC | |||
| Over-Voltage Protection | 105%~135% type: FOLDBACK cut off output reset: Automatic recovery | |||
| High-Temperature Protection | 13.8~16.2V | 27.6~32.4V | 31~36.5V | 57.6~67.2V |
| Temperature Coefficient | RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output | |||
| Start-Up, Upper, Retention Time | ±0.03%°C(0~50°C) | |||
| Shock Resistance | 2s, 50ms, 20ms | |||
| Withstand | 10~500Hz, 2G 10min./1circle, time: 60min., axes | |||
| Insulation Resistance | Input to Output Isolation: 3KVAC,input&shell: 1.5KVAC output &shell: 0.5KVAC | |||
| work Temperature/ Humidity | Input to Output Isolation, input&shell, output &shell: 500VDC/100M Ohms | |||
| Storage Temperature, Temperature | -10°C ~ +50°C, 20%~90%RH | |||
| Outline Dimension | -20°C ~ +85°C, 10%~95%%RH | |||
| Weight | 291*132*68mm shell: 910 | |||
| Safety Standards | 5Kgs | |||
| EMC Standard | UL1950, TUV EN60950 | |||
| Model Performance | CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2 | |||
