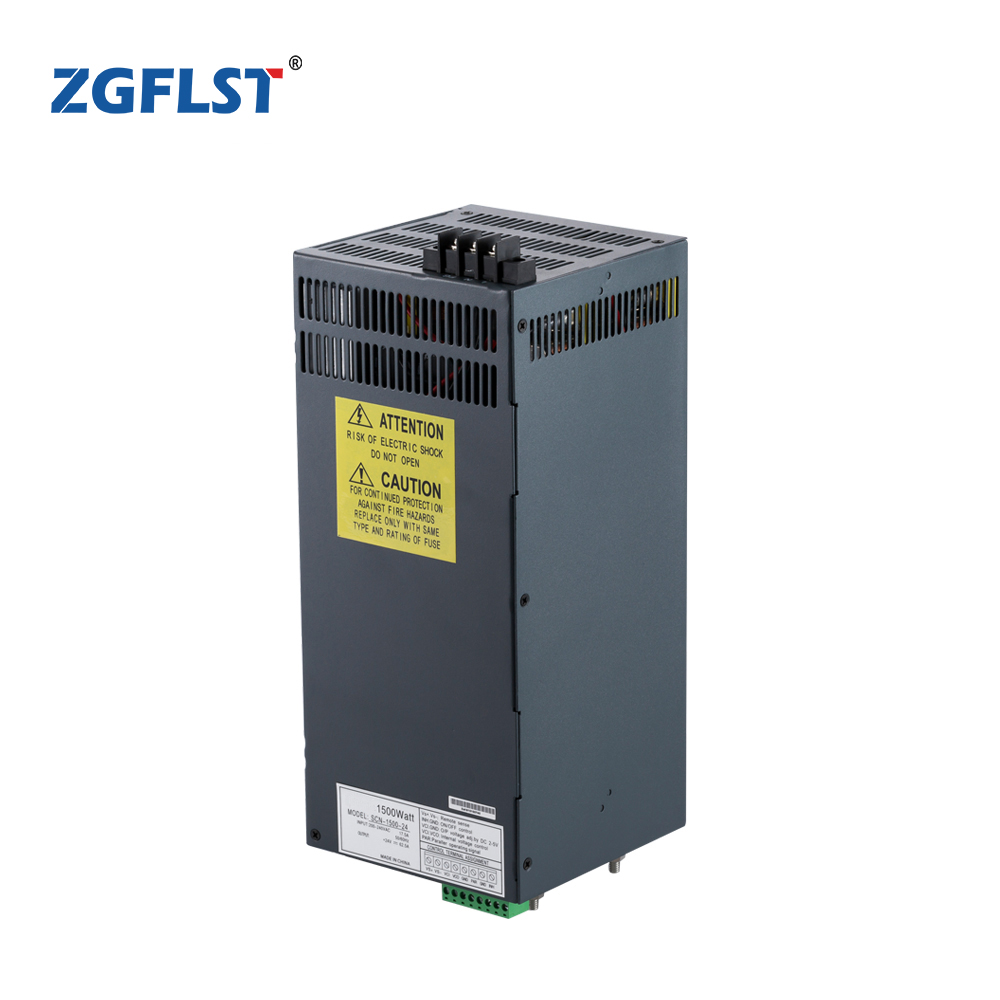

SCN-1500 1500W parallel function industrial power supply
Description:
1500W Switching SCN Series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115V and 230V can be chosen by the switch.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.
- Type and Specification
| Model Specification | SCN-1500-5 | SCN-1500-12 | SCN-1500-15 | SCN-1500-24 | SCN-1500-48 |
| DC Output Voltage | 5V | 12V | 15V | 24V | 48V |
| Output Voltage Error (Note2) | ±2% | ±1% | ±1% | ±1% | ±1% |
| Rated Output Current | 217.5A | 125A | 90A | 62.5A | 32A |
| Output Current Rage | 0-217.5A | 0-125A | 0-90A | 0-62.5A | 0-32A |
| Wave And Noise (Note3) | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p | 480mVp-p |
| Inlet Stability (Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability (Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 1000W | 1500W | 1500W | 1500W | 1500W |
| Efficiency | 77% | 83% | 85% | 85% | 87% |
| Adjustable Range For DC Voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 190~240VAC 47~63Hz | ||||
| Input Current | 12A/230V | ||||
| AC Impulse Current | 150A/230V | ||||
| Leakage Current | <3.5mA/240VAC | ||||
| Overload Protection | 105%~150%TypeTOLDBACK Reset auto recovery | ||||
| Over-Voltage Protection | .. | ||||
| High-Temperature Protection | .. | ||||
| Temperature Coefficient | ±0.03%°C(0~50°C) | ||||
| Setup Rise Hold-Up Time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | ||||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | ||||
| Withstand Voltage | Input and output interval1.5KvAC Input and enclosure1.5KvAC Output and enclosure0.5KvAC | ||||
| Isolation Resistance | Input and output intervalInput and enclosure, Output and enclosure500VDC/100MΩ | ||||
| Working Temperature And Humidity | -10°C ~ +60°C, 20%~90%RH | ||||
| Store Temperature And Humidity | -20°C ~ +85°C, 10%~95%RH | ||||
| Overall Dimension | 291*132*136mm | ||||
| Weight | 4.75Kgs | ||||
| Safety Standards | UL1012 TUV 60950(IEC950, UL1950) | ||||
| EMC Standards | CLSPR22(55022), IEC801-2, 3, 4, IEC555-2 | ||||
