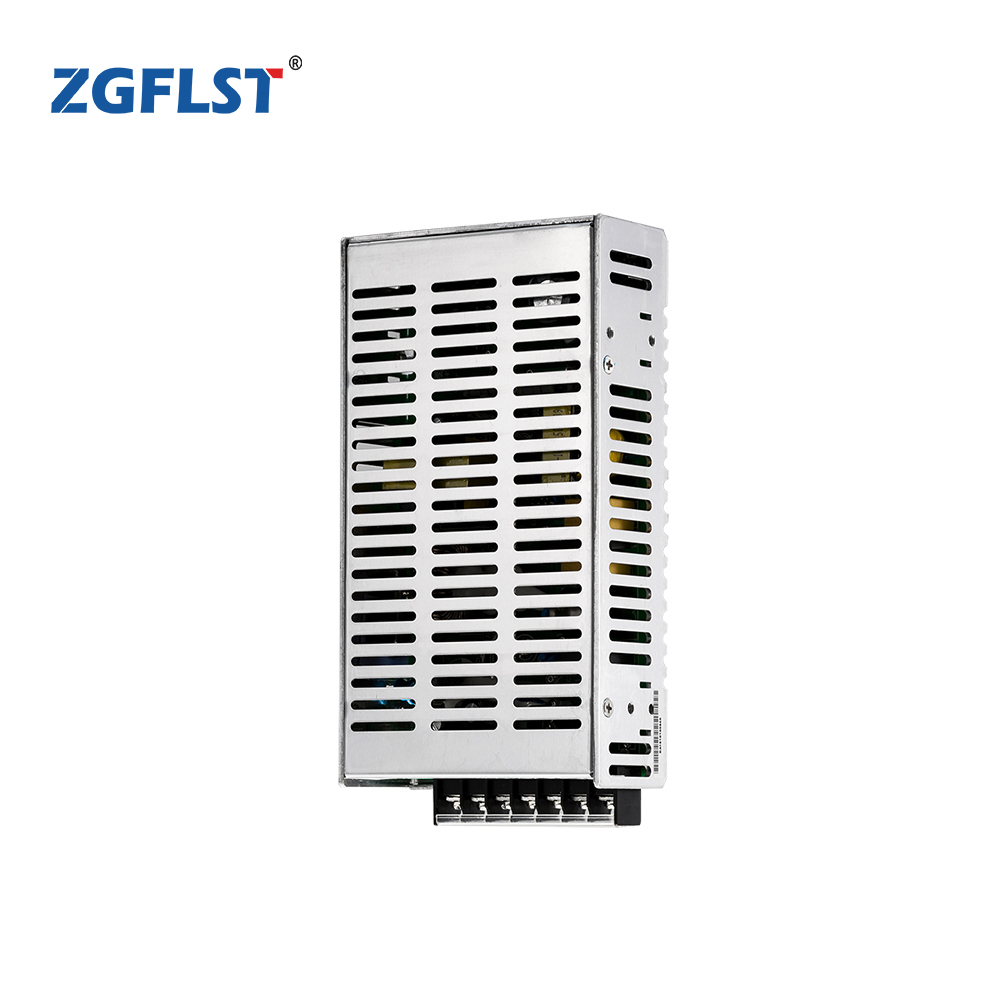

SP-100
Description:
SP-100 is a range of enclosed power supply units featuring universal AC input and built-in power factor correction (PFC).
It has a wide range of protection functions against over/under voltage, over current, overload, overhead, and over temperature, as well as short circuits.
- Type and Specification
| Model | SP-100-5 | SP-100-12 | SP-100-24 | SP-100-48 | |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Current Range | 0 ~ 20A | 0 ~ 8.5A | 0~4.2A | 0 ~ 2.1A | |
| Rated Current | 20A | 8.5A | 4.2A | 2.1A | |
| Rated Power | 100W | 100W | 100W | 100W | |
| Ripple & Noise (max.) Note.2 | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Voltage Adj. Range | 4.75 ~ 5.5V | 11.4 ~ 13.2V | 23.75 ~ 24.25V | 47.5 ~ 48.5V | |
| Voltage Tolerance NOTE.3 | 2.00% | 2.00% | 2.00% | 2.00% | |
| Line Regulation | 0.50% | ||||
| Load Regulation | 1.00% | 1.00% | 1.00% | 0.50% | |
| Setup, Rise Time Note.5 | 600ms, 30ms at full load | ||||
| Hold Up Time (Typ.) | 20ms at full load | ||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
| Frequency Range | 47 ~ 63Hz | ||||
| Power Factor (Typ.) | PF>0.93/230VAC 0.98/115VAC at full load | ||||
| Efficiency (Typ.) | 84% 76% | 80% | 82% | ||
| AC Current (Typ.) | 1.7A/115VAC 0.8A/230VAC | ||||
| Inrush Current (Typ.) | COLD START 30A/230VAC | ||||
| Leakage Current | |||||
| Protection | Over Load | 105 ~ 150% rated output power | |||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||
| Over Voltage | 5.5 ~ 6.75V | 13.2 ~ 16.2V | 23.75 ~ 24.25V | 47.5 ~ 48.5V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Function | Remote-control(Option) | CN3:4 ~ 10VDC POWER OFF, | |||
| Environment | Working Temp. | -10 ~ +60oC (Refer to output load derating curve) | |||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||
| Storage Temp., | -20 ~ +85oC , 10 ~ 95% RH | ||||
| Humidity | |||||
| Temp. Coefficient | 0.05%/oC (0 ~ 50oC ) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, the period for 60min. each along the X, Y, and Z axes | ||||
| Safety &EMC | Safety Standards | UL60950-1, TUV EN60950-1 approved | |||
| (Note 4) | Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
| EMI Conduction & Radiation | Design refers to EN55022 (CISPR22) Class B | ||||
| Harmonic Current | Compliance with EN61000-3-2,-3 | ||||
| EMS | Design refer to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, light industry level, criteria A | ||||
| Immunity | |||||
| Others | MTBF | 211.3K hrs min. MIL-HDBK-217F | |||
| Dimension | 179*99*45mm (L*W*H) | ||||
| Packing | 0.66Kg; 20pcs/14.3Kg/1.17CUFT | ||||
