S-15
Description:

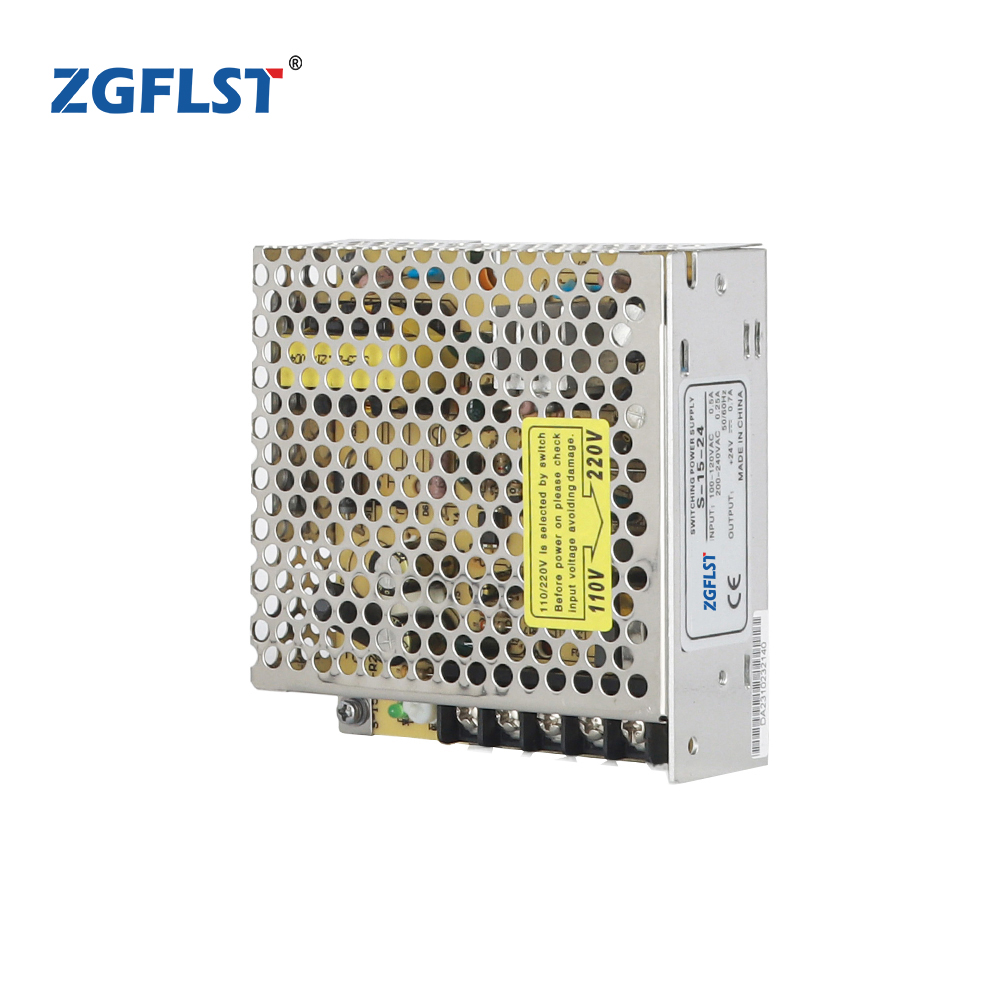

S-15W Switching Power Supply is a reliable switching power supply with high-quality material, durable, and safety to use.
A Switching Power Supply that can keep the voltage stable.
Great switching power supply for home appliances.
110V/220V AC input range, cooling by free air convection.
- Type and Specification
| Model | S-15-5 | S-15-12 | S-15-24 | |
| Output | DC Voltage | 5V | 12V | 24V |
| Voltage Tolerance | ±2% | ±1% | ±1% | |
| Rated Current | 3A | 1.3A | 0.7A | |
| Current Range | 0-3A | 0-1.3A | 0-0.7A | |
| Rated Power | 15W | 15.6W | 16.8W | |
| Ripple & Noise | 50mVp-p | 50mVp-p | 100mVp-p | |
| DC Adjustment Range | +10,-5% | ±10% | ±10% | |
| Setup, Rise, Hold Time | 200ms, 100ms, 30ms Full load | |||
| Input | Voltage Range | 85～132 VAC / 170～264 VAC 47～63 Hz by switch 240～370VDC | ||
| AC Curren | 0.5A/115V | |||
| 0.25A/230V | ||||
| Efficiency | 65% | 68% | 72% | |
| Inrush Current | Cold start: 15A/115VAC | |||
| 30A/230VAC | ||||
| Leakage Current | ＜0.5 mA/240VAC | |||
| Protection | Over Load | 110%～160% Cut off output. Fold back current limiting, recovers automatically | ||
| Environment | Working Temp. Humidity | -10℃ ～ +60℃; 20%～90%RH | ||
| Storage Temp, Humidity | -20℃ ～ +85℃; 10%～95%RH | |||
| Vibration | 10～500Hz, 2G 10min./1cycle, the period for 60min, each along X, Y, Z axe | |||
| Safety | Withstand Voltage | I/P-O/P: 1.5KVAC | ||
| I/P-FG: 1.5KVAC | ||||
| O/P-FG: 0.5KVA | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100M | |||
| Standard | Safety Standard | Design refers to UL1012 | ||
| EMC Standard | Design refer to FCC PART15J CLASS B | |||
| Others | Weight | 0.3Kg | ||
| Packing | 60pcs/18Kgs | |||
