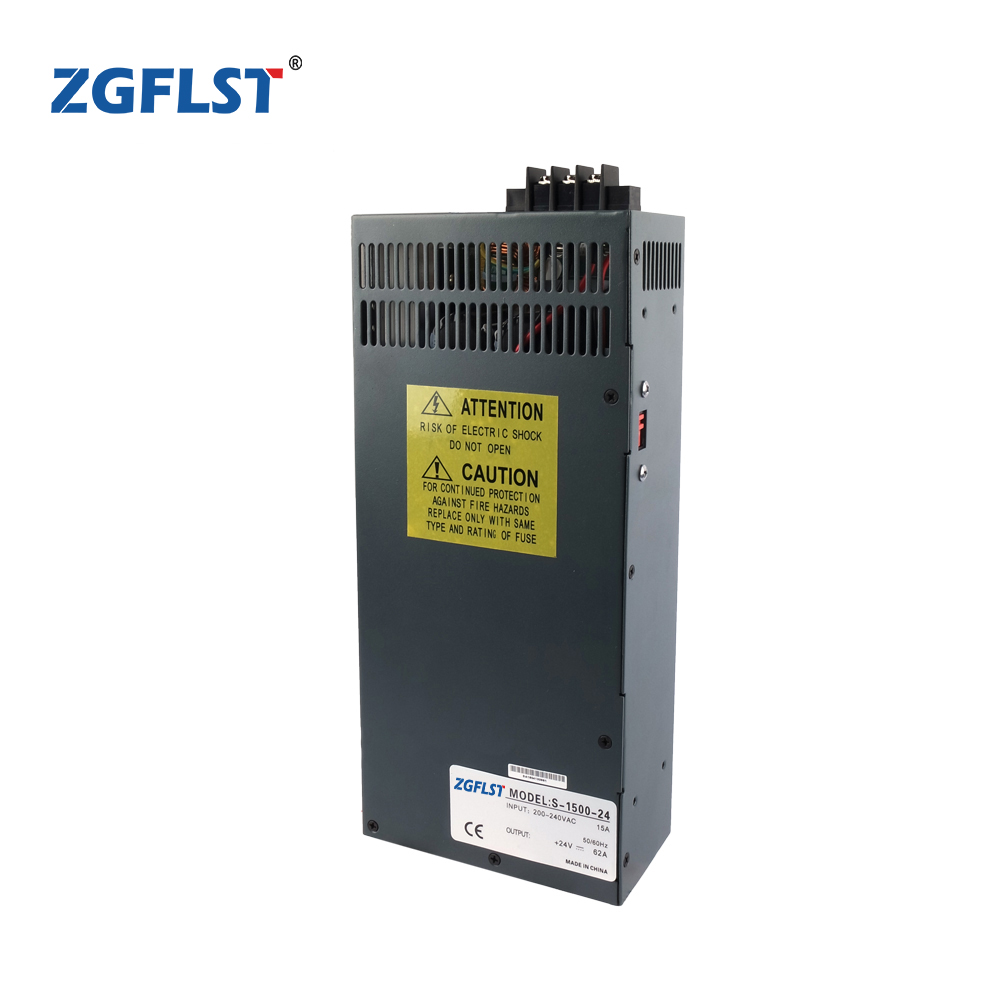

S-1500
Description:
1500W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.
Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model | S-1500-12 | S-1500-15 | S-1500-24 | S-1500-48 | |
| Output | DC Output Voltage | 12V | 15V | 24V | 48V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated Output Current | 125A | 100A | 62.5A | 32A | |
| Output Current Range | 0-125A | 0-100A | 0-62.5A | 0-32A | |
| Output Power | 1500W | 1500W | 1500W | 1536W | |
| Ripple And The Noise | 120mVp-p | 150mVp-p | 240mVp-p | 480mVp-p | |
| Dc Voltage Adjustable Scope | +5%; By external 2~ 5V voltage control, which can adjust the output voltage of the rated voltage of in the range of 40% ~ 100% in value | ||||
| Start, Rise, Keep Time | 800ms, 50ms, 16ms Loaded with | ||||
| Input | Input voltage Range | 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63 Hz; 290~370VDC | |||
| Exchange Input current | 12A/ 230 VAC | ||||
| Efficiency | 83% | 84% | 85% | 87% | |
| Impulse Current | 120A/230V | ||||
| Leakage Current | 3.5 mA/240VAC | ||||
| Protection Characteristics | Overload Protection | 110%~135% | |||
| Protection way: current limiting, delay shut off, restart | |||||
| High-Temperature Protection | TSW1 (power tube) temperature > 100 ℃, restart when cut off output | ||||
| Environment | Working Temperature, Humidity | -10℃ ~ +65℃, 20%~90 %RH | |||
| Keep Temperature, Humidity | -20℃ ~ +85℃, 10%~95 %RH | ||||
| Vibrate Resistance | 10~200Hz, 2G 10min./ 1 cycle time, 60 minutes, the axis | ||||
| Security | Compression Sex | I/P-O/P, I/P-FG: 1500VAC | |||
| Insulation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
| EMC Standard | FCC Part 15 Class A | ||||
| Other | Weight | 2.65Kg; | |||
| Packing | 6pcs/16kg/CARTON | ||||
