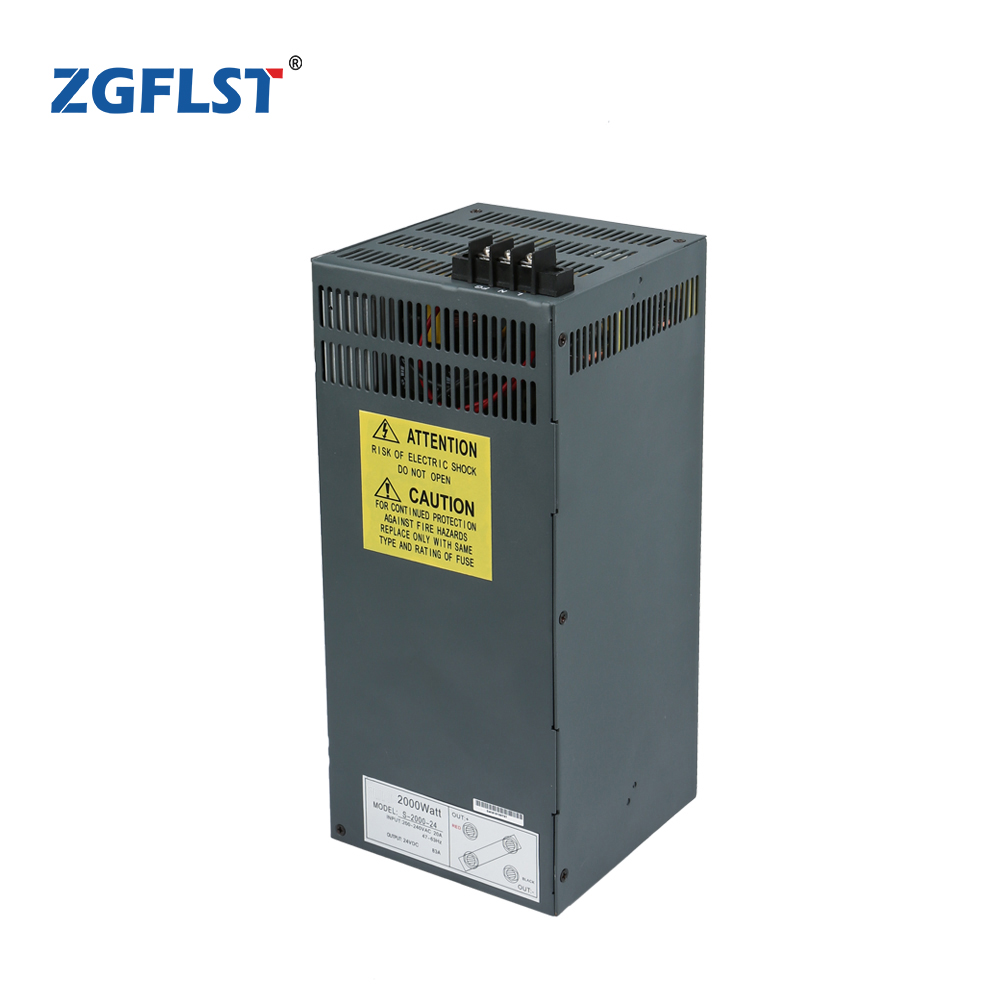

S-2000
Description:
2000W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable, air cooling by the built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.
Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.
- Type and Specification
| Model | S-2000-24 | S-2000-27 | S-2000-36 | S-2000-48 | |
| Output | DC Output Voltage | 24V | 27V | 36V | 48V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated Output Current | 83A | 74A | 55A | 41A | |
| Output Current Range | 0-83A | 0-47A | 0-55A | 0-41A | |
| Output Power | 2000W | 2000W | 2000W | 2000W | |
| Ripple And The Noise | 240mVp-p | 240mVp | 240mVp-p | 480mVp-p | |
| Dc Voltage Adjustable Scope | +5%; By external 2~ 5V voltage control, which can adjust the output voltage of the rated voltage in the range of 40% ~ 100% in value | ||||
| Start, Rise, Keep Time | 800ms, 50ms, 16ms Loaded with | ||||
| Input | Input Voltage Range | 200V~264VAC 47~63 Hz; 290~370VDC | |||
| Exchange Input Current | 11A/ 230 VAC | ||||
| Efficiency | 85% | 85% | 86% | 87% | |
| Impulse Current | 120A/230V | ||||
| Leakage Current | 3.5 mA/240VAC | ||||
| Protection Characteristics | Overload Protection | 110%~135% | |||
| Protection way: current limiting, delay shut off, restart | |||||
| High-Temperature Protection | TSW1 (power tube) temperature > 100 ℃, restart when cut off output | ||||
| Environment | Working Temperature, Humidity | -10℃ ~ +65℃, 20%~90%RH | |||
| Keep Temperature, Humidity | -20℃ ~ +85℃, 10%~95 %RH | ||||
| Vibrate Resistance | 10~200Hz AC, 2G 10min. / 1 cycle time, 60 minutes, the axis | ||||
| Security | Compression Sex | I/P-O/P, I/P-FG: 1500VAC | |||
| Insulation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
| EMC Standard | Accord with | ||||
| FCC Part 15 Class A | |||||
| Other | Weight | 5.3Kg; | |||
| Packaging | 2pcs/11kg/CARTON | ||||
| Note | 1. All the parameters have not been specified, all are in 230 VAC voltage input, rated load, and 25℃ conditions measuring income value. | ||||
| 2. Ripple and noise voltage are in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate, and adjusting the sum total of the current rate. | |||||
| 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. | |||||
